60*80mm Hexagonal Wire Mesh Making Machine For Gabion Box / Stone Cage
Application :
Gabion wire mesh netting making machines are specially designed to produce the large size and heavy-duty hexagonal wire meshes for the fence and gabions mesh.The gabion baskets are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.
| Model | Mesh Size |
Max Width |
Wire Diameter | Twisted Number | Drive Shaft Speed | Motor Capacity |
| / | mm | mm | mm | m/h | kw | |
| HGTO-6080 | 60*80 | 3700 | 1.6-3.0 | 3/5 | 80-120 | 7.5 |
| HGTO-80100 | 80*100 | 1.6-3.0 | ||||
| HGTO-100120 | 100*120 | 1.6-3.5 | ||||
| HGTO-120150 | 120*150 | 1.6-3.2 | 120+ | |||
| Dimension | Weight:5.5t | |||||
| Remark | Can be customized according to customer requirements | |||||
Advantage of our Horizontal gabion wire mesh machine:
1. The new machine adopts horizontal type structure,Running smoother
2. Its easy to operate this machine,just need 1-2 workers is ok.
3. Reduced volume, reduced floor area, greatly reduced electricity consumption, and reduced costs in many aspects.
4. Simple installation,No special technology needed
5. Suitable for hot dip galvanized wire, zinc aluminum alloy, low carbon steel wire, electric galvanized, PVC plastic and other materials.

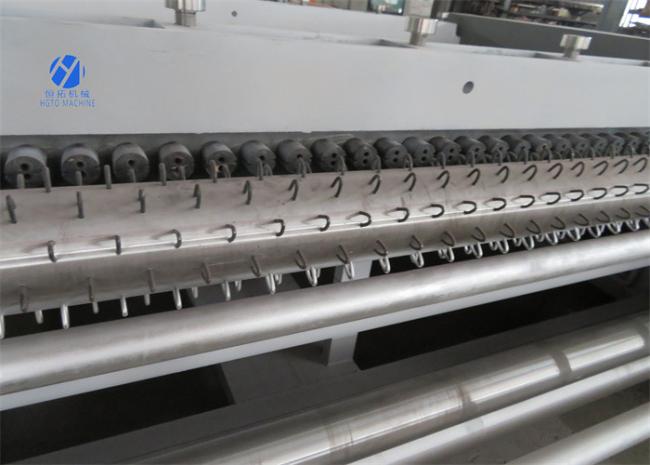

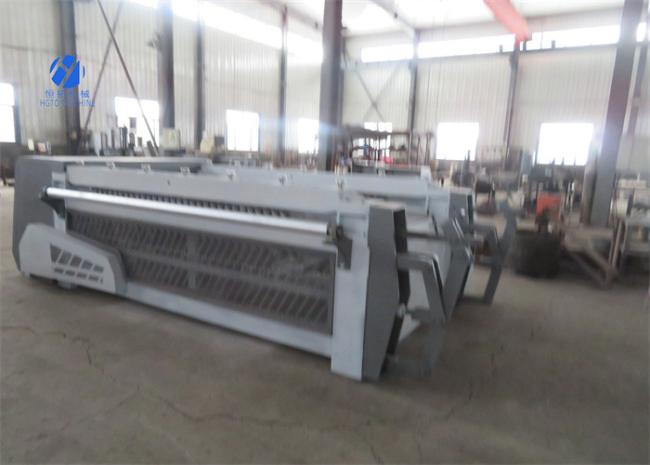

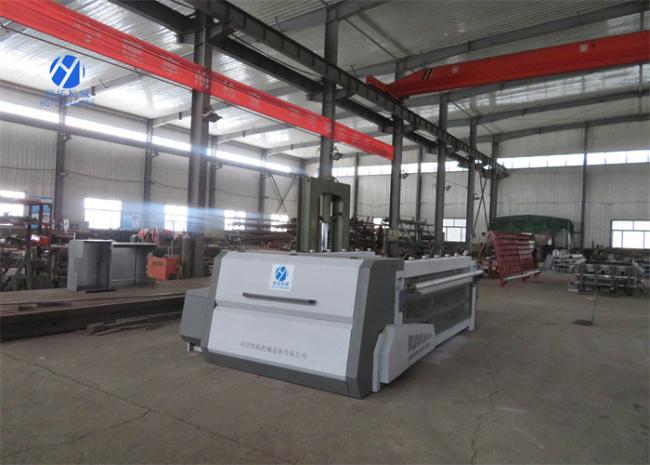

Main machine picture:

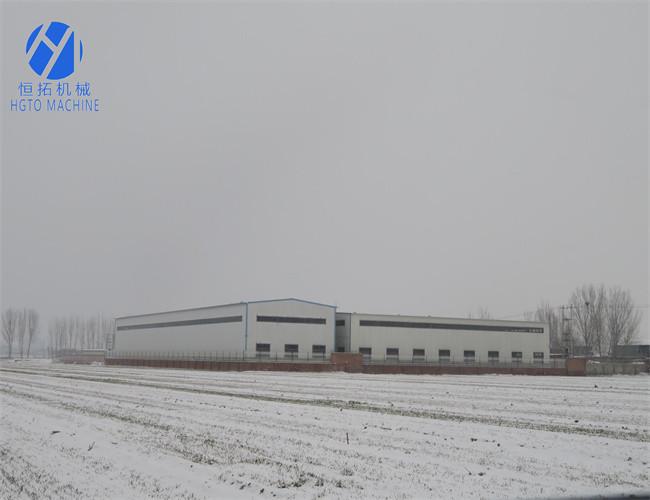

Factory Picture:
