Concertina Barbed Bto - 30 Razor Blade Wire Making Machine Fully Automatic
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25-30DAYS
Brand:
HGTO
Product Description
Factory Concertina Razor Barbed Wire Making Machine
Concertina razor barbed wire machine, also called Razor barbed wire machine.

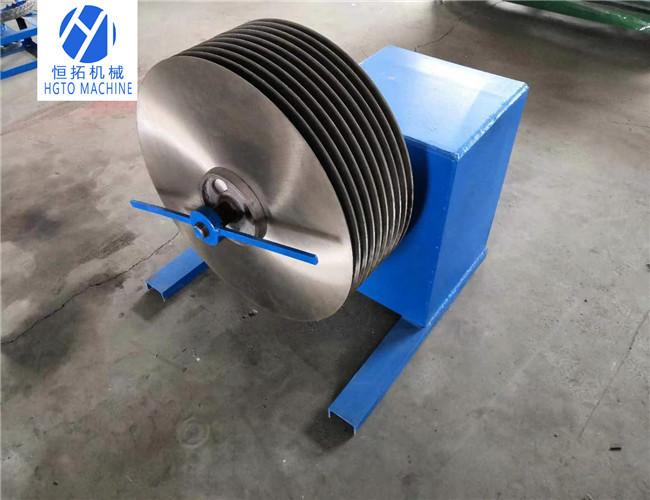

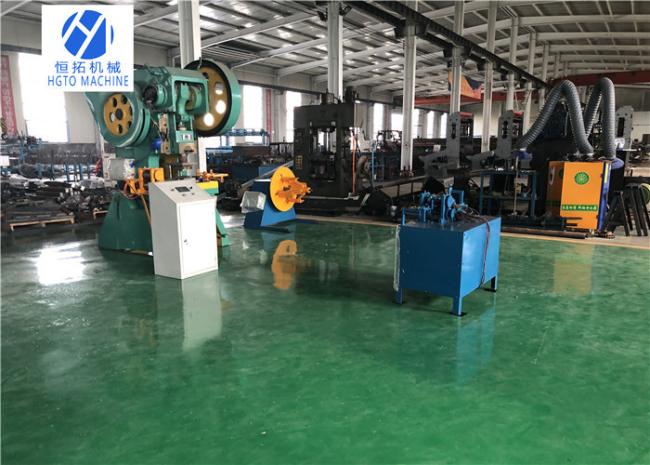

It mainly consists of decoiler, punching machine, recoiler , razor wire covering machine, control cabinet etc.
This type has advantages of easy operation,easy maintain,high speed and low energy consumption.
The finished razor wire is widely used on security isolation of military facilities, stations, power distribution stations, border prisons, landfill, community protection, schools, factories, farms etc.
| MODEL | 25T | 40T | 63T | COILING MACHINE |
| VOLTAGE | 3phase 380V/220V/440V/415V, 50HZ or 60HZ | |||
| POWER | 4KW | 5.5KW | 7.5KW | 1.5KW |
| PRODUCING SPEED | 70TIMES/MIN | 75TIMES/MIN | 120TIMES/MIN | 3-4TON/8H |
| PRESSURE | 25TON | 40TON | 63TON | -- |
| MATERIAL THICKNESS AND WIRE DIAMETER | 0.5±0.05(mm),according to customers' requirement | 2.5MM | ||
| MATERIAL OF SHEET | GI and stainless steel | GI and stainless steel | GI and stainless steel | ----- |
BLADE TYPES:
| STYLE | BARBE LENGTH | BARB WIDTH | BARB SPACE | STEEL TAPE SHAPE |
| BTO-10 | 10±1 mm | 13±1mm | 26±1mm |  |
| BTO-12-1 | 12±1mm | 13±1mm | 26±1mm |  |
| BTO-12-2 | 12±1mm | 15±1mm | 26±1mm |  |
| BTO-18 | 18±1mm | 15±1mm | 33±1mm |  |
| BT0-22 | 22±1mm | 15±1mm | 48±1mm |  |
| BTO-28 | 28±1mm | 15±1mm | 49±1mm |  |
| BTO-30 | 30±1mm | 18±1mm | 49±1mm |  |
| BTO-60 | 60±1mm | 32±1mm | 96±1mm |  |
| BTO-65 | 65±1mm | 21±1mm | 100±1mm |  |
