Fully Automatic Barbed Wire Manufacturing Machine 3kw Motor
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25-30DAYS
Brand:
HGTO
Product Description
Fully Automatic Barbed Wire Machine
CS serie Barbed Wire Machine is used for making high tensile security barbed wire products with the material galvanized wire,pvc coated wire , stainless steel wire.It is fully automatic and easy to operate with three models CS-A,CS-B and CS-C.
Machine features:
1,Manually installation, Easy to set up;
2,Steel cover on driving shaft for safety operation;
3,Saving materials and high capacity;
4,Counter to count the number of barbs and calculate length of barbed wire.
5,Button switches and leveler to start and stop machine easily.
6,Quick and easy roll extraction from the machine.
7,Guiding system to avoid wire snarls..
3,Saving materials and high capacity;
4,Counter to count the number of barbs and calculate length of barbed wire.
5,Button switches and leveler to start and stop machine easily.
6,Quick and easy roll extraction from the machine.
7,Guiding system to avoid wire snarls..
Specification of barbed wire mesh machine:
| Model | CS-A | CS-B | CS-C |
| Core Wire | 1.5-3.0mm | 2.2-3.0mm | 1.5-3.0mm |
| Barbed wire | 1.5-3.0mm | 1.8-2.2mm | 1.5-3.0mm |
| Barbed space | 75mm-153mm | 75mm-153mm | 75mm-153mm |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Drive speed | 402r/min | 355r/min | 355r/min |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 40kg/h,18m/min |

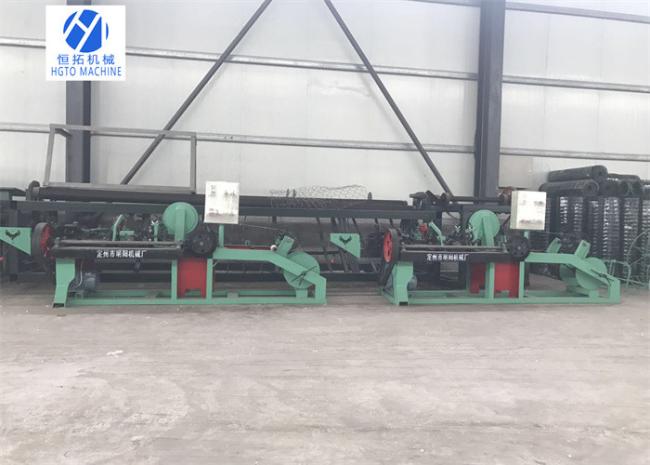

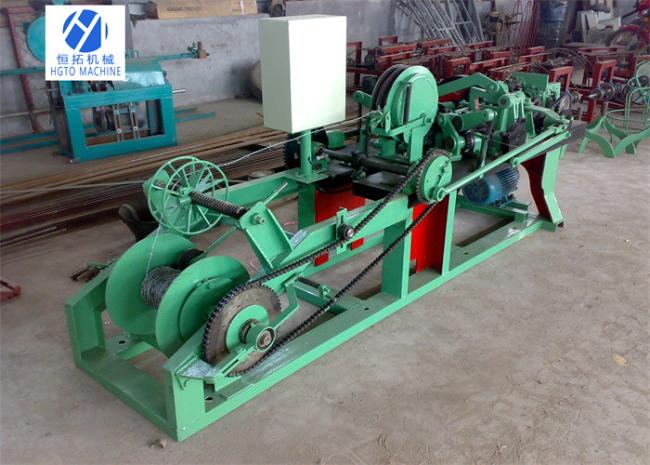

Machine Pictures:
