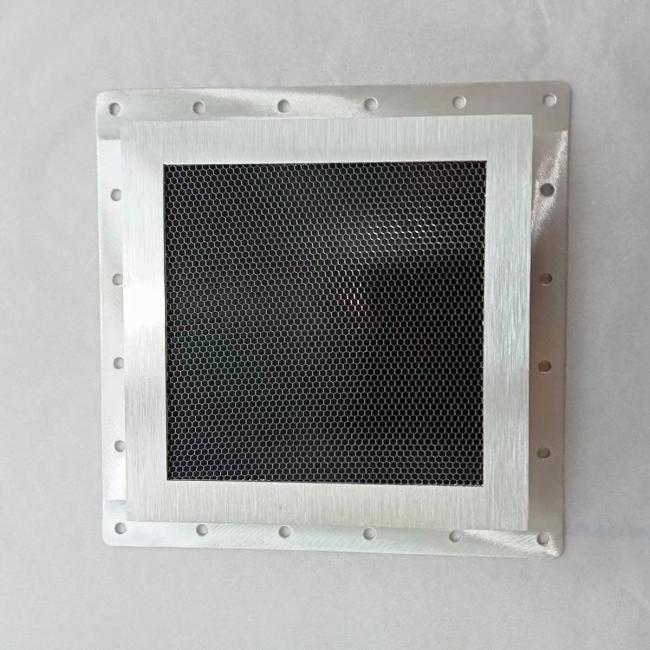

4.8mm Cell Size Aluminum Honeycomb Emi Shielded Faraday Cages 25mm Thickness
4.8mm cell size Emi Shielded Aluminum Honeycomb Faraday Cages 25mm thickness
1.Specification:
EMC Woven mesh ventilation panels are used for heating, air flow for cooling and ventilation in electronic enclosures without compromising the shielding integrity of an enclosure.
The 3 layers of pleated wire mesh are separated by the pleats being of different height, thus enabling the vent to have a high dust holding capacity.
These panels can be treated with a variety of finishes to provide corrosion protection or improve conductivity. Air filter oil can be applied to the Aluminium filter media to assist in dirt and dust retention. Panels with a gasket groove have a knitted monel wire mesh gasket as standard. Other frames can be provided with an additional EMI Gasket.
2.Details :
| material | brass /Tin plated steel | ||
| core area size 300mm*300mm | hole cell 3.2mm | hole cell 4.2mm | hole cell 5.2mm |
| thickness 25mm | 300mm*300mm*25mm*3.2mm | 300mm*300mm*25mm*4.2mm | 300mm*300mm*25mm*5.2mm |
| thickness 50mm | 300mm*300mm*50mm*3.2mm | 300mm*300mm*50mm*4.2mm | 300mm*300mm*50mm*5.2mm |
3.Benefits
Light weight
High shielding performance
Very low air-flow resistance
4.FAQ:
1. Can we get a product sample?
Yes, we can offer sample to you.
2. As for the honeycomb, what materials can you offer ?
We can offer brass / stainless steel/ tin plated steel materials....
