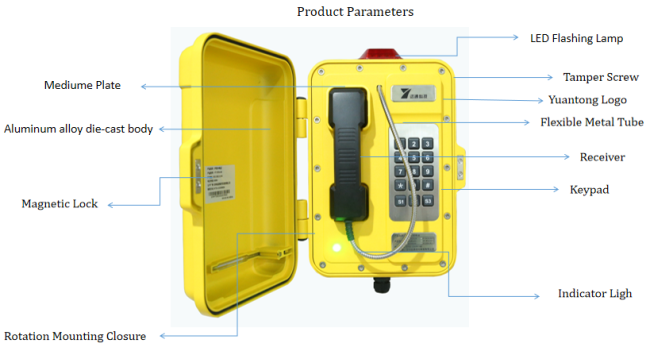

Industrial Waterproof Telephone

The weatherproof telephone is an emergency phone that specifically contained within a corrosion resistant cast aluminium alloy weatherproof case. With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product and ensure that the primary function of communications is always maintained. Extremely easy to install.

TECHNICAL SPECIFICATION

Analogue Version

Power Supply From the analogue telephone network

Supply Voltage 24 VDC to 65 VDC

Supply Current 20 mA DC to 100 mA DC

Ringer Volume – 80dB(A) at a distance of 1 m

– 110dB(A) at a distance of 1 m (for external horn speaker)

Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version

Power Supply PoE or 12V DC

Power Consumption -Idle:1.5W

-Active:1.8W

SIP Protocol SIP 2.0 (RFC3261)

Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729

Communication Type Full duplex

Ringer volume – 90~95dB(A) at a distance of 1 m

– 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions

Protection type IP 68 as per EN60529

Operating temperature -40°C to +70°C

Storage temperature -45°C to +85°C

Application

We offer industrial grade outdoor weatherproof telephones with a rugged, weatherproof telephone enclosure..Housed in aluminum alloy box and manufactured to a high standard, this Waterproof Phone offers increased resistance to vandalism, and ensure that the primary function of communications is always maintained. It is suitable for use in Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.  Extremely easy to install.

PACKAGE

Dimensions
(Measured in mm) Unit size: 350*280*140(mm)

Package Reference
Telephone 1pc in one Carton size: 20*30*44cm; G.W.: 7.8KG; N.W.: 7KG

Packaging materials: pearl cotton, carton;
