530T Injection Molding Machine Servo Motor High Output Automation

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 2 months
Brand: OUCO
Product Description

OUCO 530T High Quality High Output Plastic Fruit Box Yellow Crate Injection Molding Machine Hydraulic Servo

OUCO injection moulding machine expands its unique performance by installing auxiliary injection device on the basis of adopting servo system. With strong market adaptability, our company can provide better injection moulding machine customization service to meet the diversified needs of customers. Our concept is to design, develop, produce and sell multifunctional specialised plastic machine equipment to build our own brand.

Product Advantages

Professional plasticising unit: the fruit baskets produced are reasonably matched with the plasticising unit according to the user's demand, which ensures the consistent and fine quality of the fruit baskets.
Professional melting unit: adopting good materials, barrels and screws, the melting speed is fast, the melting time is short, and it is not easy to leak the glue. High pressure and high speed operation is not easy to cause the precursor to crack its ensure the fruit baskets strong and durable, long service life.
Unique hydraulic system: oil circuit design, the use of cartridge valve plate, fast response time, accurate pressure and speed control, high moulding precision, the production of fruit baskets are not easy to deform, less scrap.

Parameters

                                                                 MODEL OCM-530T
Clamping force (kN) 530
Space between tie bar (mm*mm) 810*810
Max. mold thickness (mm) 850
Min. mold thickness(mm) 300
Opening stroke (mm) 810
Ejector stroke(mm) 250
Ejector force forward(Kn) 150
Screw diameter(mm) 90
Screw L/D ratio 24
Theoretical injection volume (cm3) 2700
Shot weight (PS) g 3330
Injection pressure(MPa) 149
Injection speed (mm/s) 170
Injection rate (g/s) 750
Motor power (Kw) 55
Oil tank capacity(L) 750
Heater power (Kw) 34
Machine Weight (kg) 23
Machine size L×W×H (mm) 8400*2200*2700

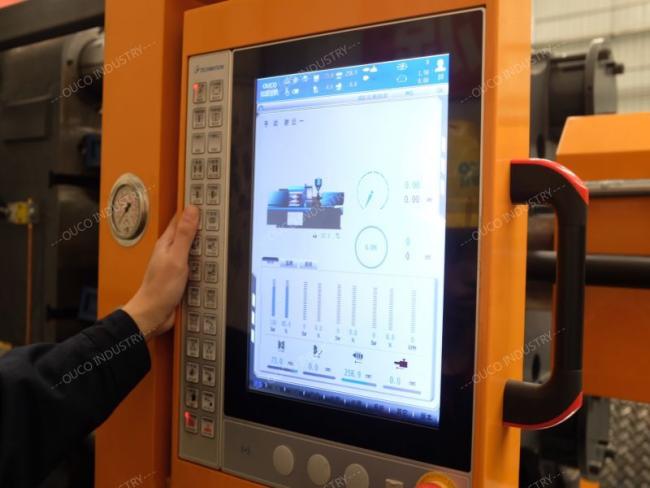

Detail Pictures
