China Lab Battery Coating Machine , Automatic Film Coater ISO certificate for sale

Lab Battery Coating Machine , Automatic Film Coater ISO certificate

Price Negotiable

Price: 35000

MOQ: 1 Set

Delivery Time: 20

Brand: ZHIK

Product Description

Battery Lab Automatic Film Coating Coater Machine For Lithium Battery Making Machines

Product Description

Automatic Coating Machine

It is suitable for the continuous Coating process of battery positive and negative plates. It is replaced by a three-roller

transfer type. A very uniform thin coating is applied on the surface of the substrate and then automatically dried by the drying

system. The operation of oven drying, and improve the uniformity of squeegee and drying efficiency.

Slurry Stirring

Can prevent slurry precipitation during the coating process

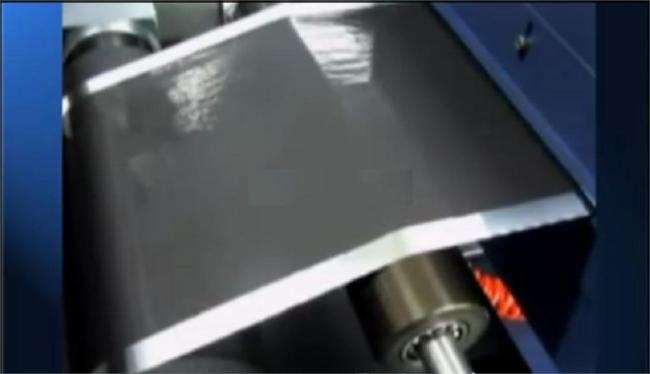

Continuous mode

Two available coating modes selectable on the control panel

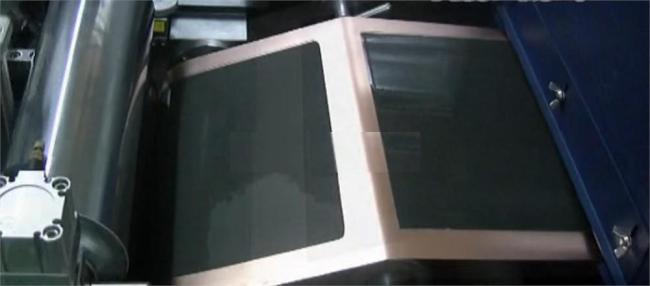

Intermittent coating

The length of the coating and break segments can bespecified by the user

Technical Parameter

1	model	ZK-CZ300
2	main feature	Automatic tape feeding, automatic winding, adjustable coating tension
		Equipped with a drying system, automatic coating drying
		Temperature control adopts PID adjustment system, with high control accuracy and reliable work
		Adopt hot air circulation system, which can make the temperature inside the box even and not easy to burn the pole pieces;
		With automatic stirring rod, the slurry is more uniform when coating, and the contact part of the slurry is stainless steel structure
		The main drive adopts frequency conversion speed control, wide speed range, constant and reliable speed, constant torque speed control system, stable performance and high coating accuracy
		Continuous uninterrupted coating, tidy winding
		Exquisite appearance, the sheet metal adopts three-dimensional geometric design, simple and beautiful
3	Painting method	single-sided continuous
4	Applicable baseband	copper foil, aluminum foil, etc
5	Pole piece width	≤300mm
6	Coating speed	100-600mm / min (adjustable)
7	Coating accuracy	≤ ± 0.003mm
8	Coating roller bounce	≤2μm
9	Coating roller diameter	Φ100mm
10	Unwinding diameter (Max)	Φ250mm
11	Rewinding diameter (Max)	Φ250mm
12	Tension control	5-50N (adjustable)

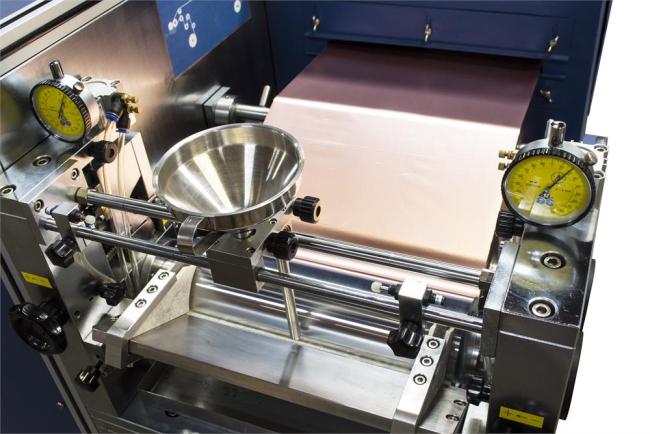

13	Scraper positioning accuracy	dial indicator display, accuracy ± 1μm
14	Drying temperature (Max)	adjustable from room temperature to 150 ℃ with hot air circulation
15	Drying method	upper and lower air blowing (resistance wire heating)
16	Heating area	Area 1, 1.2 meters
17	Compressed air	pressure 0.5Mpa ~ 0.7Mpa
18	flow rate	0.04M3 / min
19	Power supply	AC220V / 50Hz
20	Maximum power	about 5kW
21	Dimensions	length × width × height = 1800 × 810 × 1300
