Pneumatic Battery Cell Making Machine , Coin Cell Crimping Machine For Button Cell

Price Negotiable

Price: USD1350-2200/Piece

MOQ: 1 Piece

Delivery Time: 24

Brand: ZHIK

Product Description

Pneumatic Coin Cell Crimping Sealing Machine Battery Crimper Sealer For Button Cell

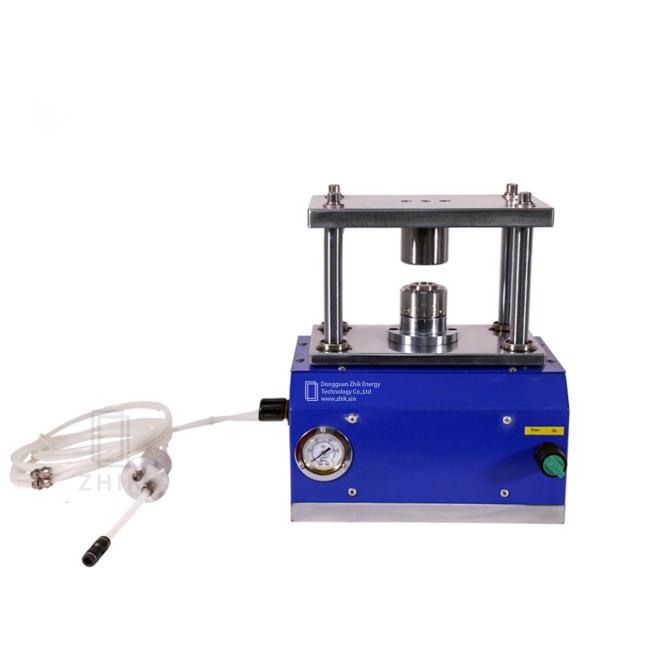

Pneumatic Coin Cell Crimping Machine

ZK-CC20P coin cell crimper is a newly designed coin-cell sealing machine with lighter weight. It’s mainly used for coin cell battery material lab researching, capacitor sealing research,also be used in small batch trial production in factories. Equipped with different die,also used for disassemble battery,press electrode sheet,press battery powder,etc. It can also be worked in glove box with smaller volume.

Product name			Pneumatic Coin Cell Crimping Machine
Model No.			ZK-CC20P
Air source			0.6~0.8MPa argon, nitrogen gas cylinder, or compressed air (compressed air is not recommended in the glove box)
Exhaust design			specially designed exhaust port, which can be connected externally through KF40 and other devices
Sealing pressure			manual control valve control, pressure 1MPa, recommended pressure 0.7MP accuracy within ±0.5%
Dimensions			295mm X 200mm X 335mm
Weight			30kg
