7.5kw Portable Shotcrete Machine Large Capacity Gunite Sprayer
Large Capacity Stable Performance Portable Shotcrete Machine durable
Portable Shotcrete Machine
Maintenance of Portable Shotcrete Machine:
For the main transmission gearbox:
1. After each shift, the mixing materials and other sundries adhered to the surface shall be cleaned in time.
2. Observe the oil level in the gearbox before starting each shift, and replenish it in time if it is insufficient.
3. When the reducer works, the temperature rise shall not be greater than 60℃, and there shall be no abnormal vibration or noise. Otherwise, inspection and maintenance should be carried out.
4. Replace lubricating oil once for 250 hours.
Parameters of Portable Shotcrete Machine:
| Model | TK600 | |
| Throughput | 4-6 m3/h | |
| Maximum conveying distance | 40/20 m | |
| Maximum aggregate size | ≤20 mm | |
| Conveying working pressure | 0.4-0.6 MPa | |
| Power | 7.5 Kw | |
Use and Operation of Portable Shotcrete Machine:
Portable Shotcrete Machine has two functions of tidal spraying and wet spraying. Before using it, the operator must read the Instructions for Use carefully and be familiar with the structure and operation rules of the machine before going on duty.

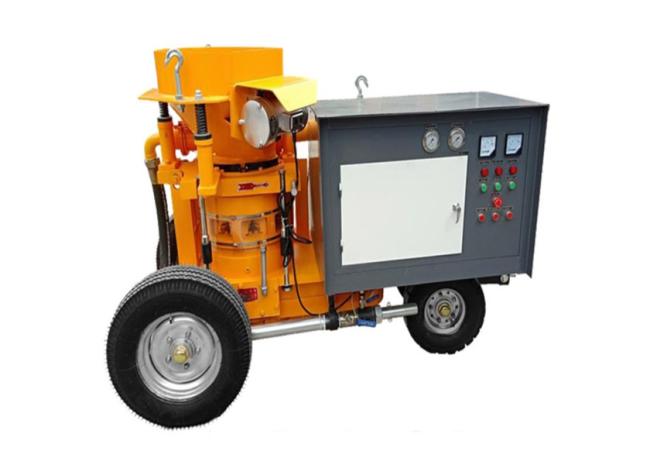

Pictures of Portable Shotcrete Machine:
