2000kg Heavy Duty Sliding Gate Opener 50Hz Heavy Duty Auto Gate Motor
Ac 220v Single Phase 2000kg Heavy Duty Automatic Door Operators Commercial Use
Quiet performance, more durable and reliable. making it one of our company's best-selling products.
If the gate hits an obstacle, it automatically reverses or closes or stops moving
Limit switch N.C./N.O. selectable (using micro switch)
Photoelectric sensor (optional)
Adjustable Force Sensing Trimmers
Equipped with heavy duty AC motor (230 VAC)
For sliding doors up to 2000 kg
|
G20 Commerical use |
|
| Power Supply | 220V +/- 10%, 50Hz- Single Phase |
| Power of motor | 700W |
| Output Pinion | 19 Tooth Mod 4 |
| Operating Speed | 12m/min |
| Motor Cooling | Direct Drive Fan (1400RPM) |
| Ambient Temperature Range | From-37'F (-35°C) to 149.F (+65'C) |
| Motor Thermal Protection | Electronic |
| Maximum Gate length | 20m |
| IPRating | 44 |
| Shipping Mass of Unit | 17.5kg(- 39 Ibs) |
| Maximum Gate Mass | 2000kgs (~4410 lbs) |
Supporting sliding gate up to 2000kg in 220V and 110V versions;
Built-in 433 MHZ and electromechanical or magnetic limit switch;
Built-in control panel for G20 automatic sliding gate operator;
Keeping excellent quality by reliability and safety features;
G20 series is heavy duty gate motors and support standard sliding gate with 2000kg in weight.
Galvanized steel gear rack for this driveway sliding gate openers is one of the necessary accessories;

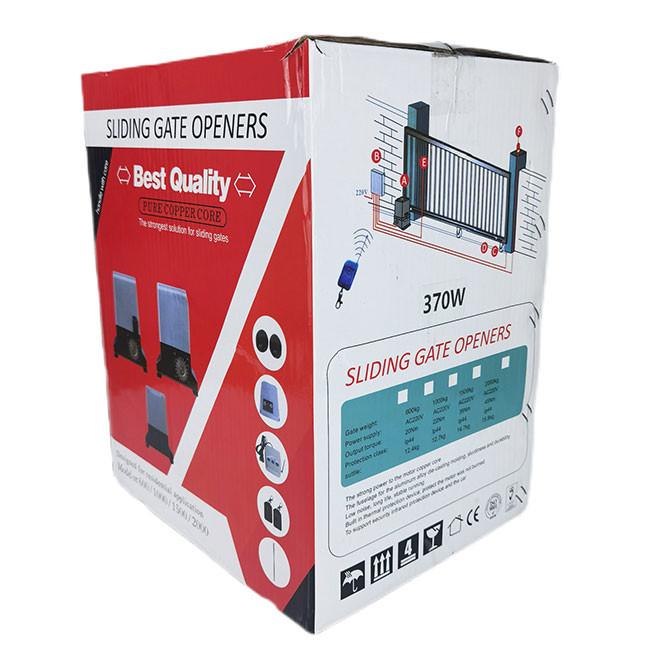

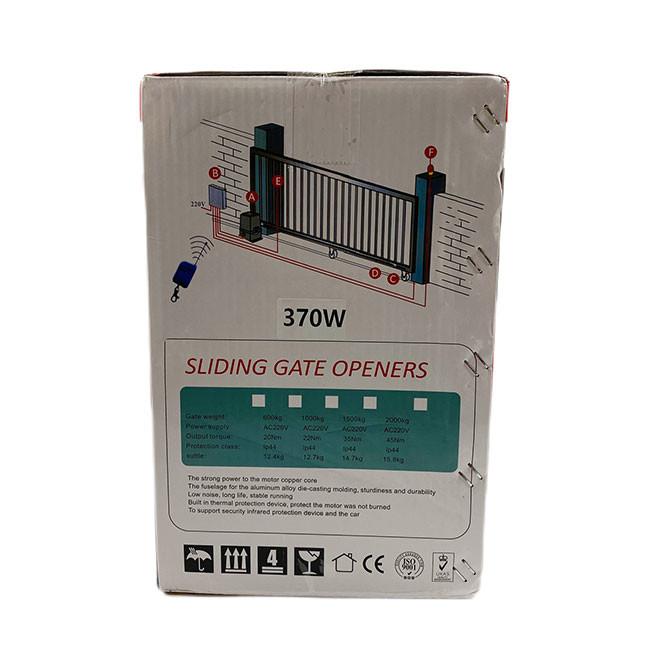

Package of 2000kg heavy duty automatic door operators
The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality
FAQ
What is the input voltage for this gate motors ?
220V input voltage.
What is the Max weight of gate?
Max weight supporting is 2000kgs.
How many models do you have for sliding gate openers ?
G6,G8,G15,G20,G30
What is the frequncy of your remote control for this sliding gate motors?
Remote control models are 433Hz.
What is the longest remote control distance in meters?
Long range distance reach 100m.
How many gate motors can be controlled by a remote control?
4 gate motors for a remote control.
Is there a requirement for the MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.
What kind of payments do you support?
Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.
What is your warranty terms?
2 year warranty
How long is your delivery time?
For standard products, 10-25 days are available.
