Aluminum Electric Sliding Gate Opener 370W Waterproof For Entry Door
Ac 220v Single Phase 800kg Lightweight Electric Sliding Gate Operators Residential Use
The maximum distance for this voltage power cables is 10-20 meters This is assuming the gate will operate at the maximum gate weight, for lighter gates the distance can be greater.
|
Light weight Electric Sliding Gate Openers G8 Residential Use |
|
| Power Supply | 220V +/- 10%, 50Hz- Single Phase |
| Power of motor | 370W |
| Output Pinion | 19 Tooth Mod 4 |
| Operating Speed | 12m/min |
| Motor Cooling | Direct Drive Fan (1400RPM) |
| Ambient Temperature Range | From-37'F (-35°C) to 149.F (+65'C) |
| Motor Thermal Protection | Electronic |
| Maximum Gate length | 20m |
| IPRating | 44 |
| Shipping Mass of Unit | 15kg(- 32 Ibs) |
| Maximum Gate Mass | 800kgs (~1764 lbs) |
The door is automatically locked and can only be operated by a remote control and a key that provides manual operation.
Built-in operator: Transformer with 3-pin plug and leads, control board, remote control receiver and limit switches.
2 x button remote,extra button remote also are available;
2 x manual release keys;
Height-adjustable motor base plate;
Operates on a remote the system can be operated using almost any access control system (RFID, Wifi.)
Comes with a flash to notify that the door is in operation.
The automatic door closing delay time is adjustable.
Control with force adjustable .
Built-in obstacle detection and overcurrent settings.
Behavioral control of blocking by photocells.
Soft start and soft stop

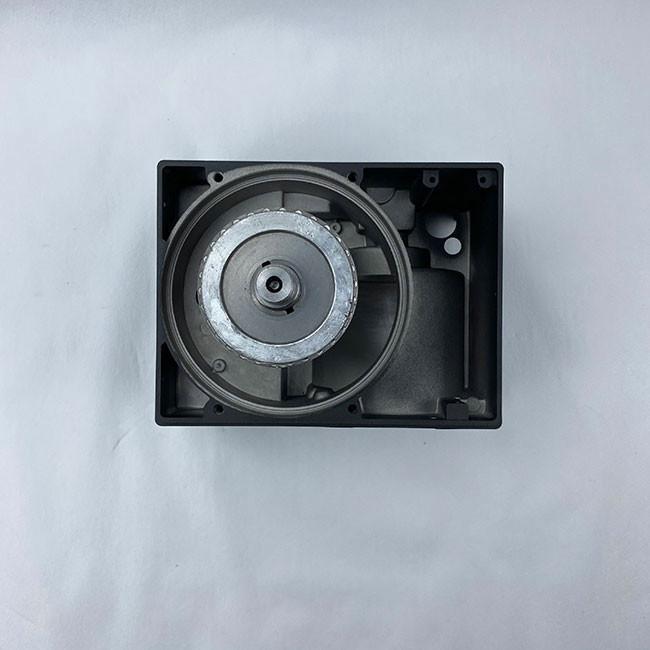

Inside of sliding gate motors
The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality
FAQ
What is the input voltage for this gate motors ?
220V input voltage.
What is the Max weight of gate?
Max weight supporting is 800kgs.
How many models do you have for sliding gate openers ?
G6,G8,G15,G20,G30
What is the frequncy of your remote control for this sliding gate motors?
Remote control models are 433Hz.
What is the longest remote control distance in meters?
Long range distance reach 100m.
How many gate motors can be controlled by a remote control?
4 gate motors for a remote control.
Is there a requirement for the MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.
What kind of payments do you support?
Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.
What is your warranty terms?
2 year warranty
How long is your delivery time?
For standard products, 10-25 days are available.
