800kg Electric Sliding Gate Opener Powder Coated Auto Gate Sliding Motor
Heavy Duty DC 24V 800kg Electric Sliding Gate Operators Residential Use
Gearmotors in 24 V (DC) versions with robust construction for large-scale automation for use in apartments. Its complete irreversibility ensures that the door closes up to 10 meters without the need for an electric lock.
|
Heavy Duty Electric Sliding Gate Openers DC24 Residential Use |
|
| Power Supply | 110V +/- 10%, 60Hz- Single Phase |
| Power of motor | 180W |
| Output Pinion | 19 Tooth Mod 4 |
| Operating Speed | 12m/min |
| Motor Cooling | Direct Drive Fan (1400RPM) |
| Ambient Temperature Range | From-37'F (-35°C) to 149.F (+65'C) |
| Motor Thermal Protection | Electronic |
| Maximum Gate length | 20m |
| IPRating | 44 |
| Shipping Mass of Unit | 17.5 kgs(- 39 Ibs) |
| Maximum Gate Mass | 800kg |
24V version of the speed and position management and control system. Built-in four channel radio receiver
Proximity limit switches allow for accurate and safe installation in any environmental conditions.
Backup battery powered system, on-board unit (24V version) can be installed.

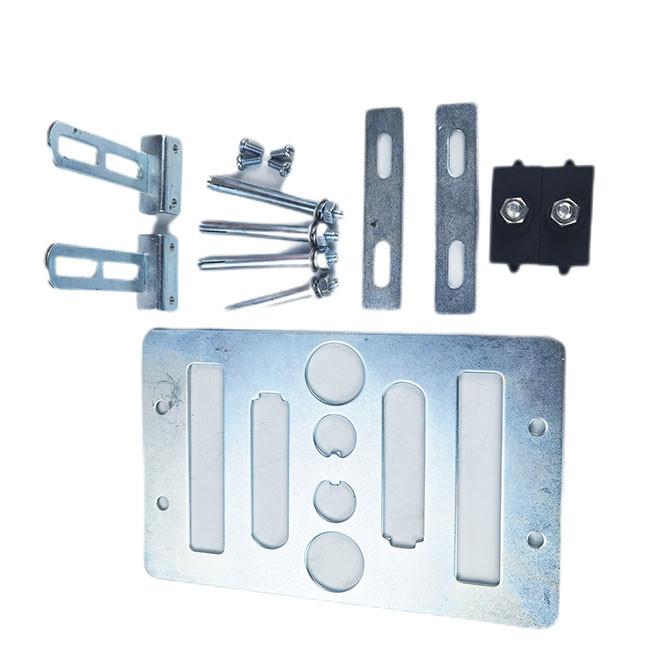

Gear Motor, 2x Remote Controls, Safety Sensors, Signal Lights, Rack and Pinion
Remote frequency: 433.92 Mhz
Remote Code: Rolling Code.
Maximum number of remotes 50
Four-channel multi-function remote control
External receiver with 400pcs transmitters or 800pcs transmitters for your optional
The maximum door width is 10 meters

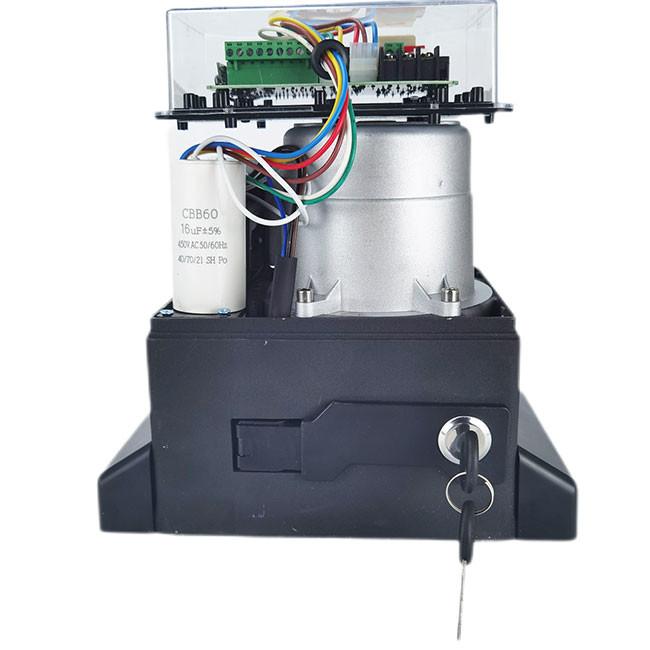

PCB for sliding gate openers
The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality
FAQ
What is the input voltage for this gate motors ?
110V input voltage.
What is the Max weight of gate?
Max weight supporting is 800kgs.
How many models do you have for sliding gate openers ?
G6,G8,G15,G20,G30
What is the frequncy of your remote control for this sliding gate motors?
Remote control models are 433Hz.
What is the longest remote control distance in meters?
Long range distance reach 100m.
How many gate motors can be controlled by a remote control?
4 gate motors for a remote control.
Is there a requirement for the MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.
What kind of payments do you support?
Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.
What is your warranty terms?
2 year warranty
How long is your delivery time?
For standard products, 10-25 days are available.
