220v Heavy Duty Sliding Gate Opener 2T Aluminum Galvanized IP44
Ac 220v Single Phase 2000kg Automatic Sliding Driveway Heavy Duty Gate Openers Commercial Use
GATECH automation achieves maximum power with Maxi series heavy duty sliding door motors.This industrial sliding door opener is made entirely of high-strength components and is designed for the automation of very heavy sliding doors.
Using GATECH technology, only two wires can power and control up to one pair of photocells in the Moonbus series.
|
G20 Commercial Use |
|
| Power Supply | 220V +/- 10%, 50Hz- Single Phase |
| Power of motor | 700W |
| Output Pinion | 19 Tooth Mod 4 |
| Operating Speed | 12m/min |
| Motor Cooling | Direct Drive Fan (1400RPM) |
| Ambient Temperature Range | From-37'F (-35°C) to 149.F (+65'C) |
| Motor Thermal Protection | Electronic |
| Maximum Gate length | 20m |
| IPRating | 44 |
| Shipping Mass of Unit | 17.5 kgs(~ 37 Ibs) |
| Maximum Gate Mass | 1500 kgs ~ 2000 kgs (3308 lbs ~ 4410 lbs) |
Using GATECH technology, only two wires can power and control up to one pair of photocells in the Moonbus series.
The kit contains:
1 non-reversible electromechanical gear motor with integrated control unit and electromechanical limit switches.
Two transmitters 433.92MHz, 2 channels.
1 pair of external photocells designed by GATECH for connection

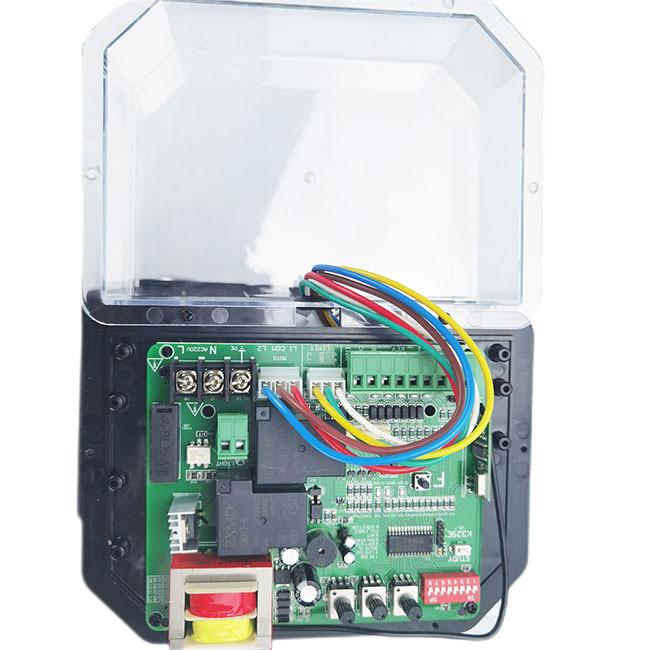

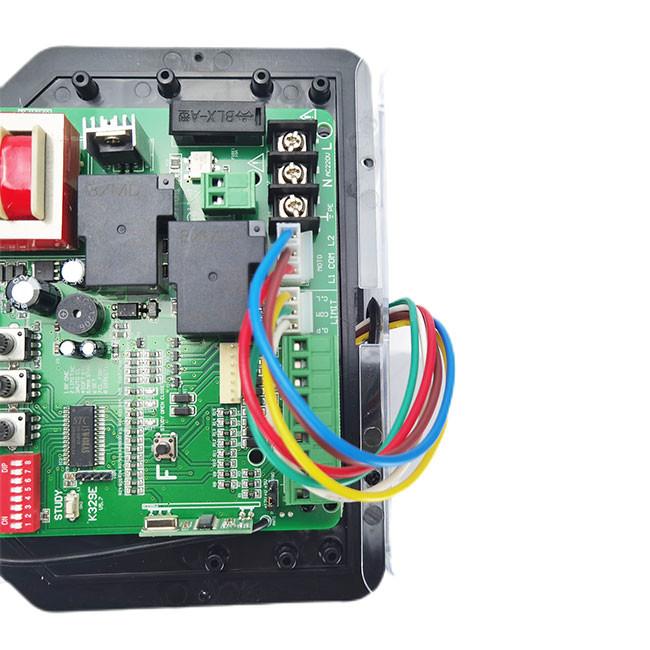

PCB for sliding gate openers
The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality
FAQ
What is the input voltage for this gate motors ?
220V input voltage.
What is the Max weight of gate?
Max weight supporting is 2000kgs.
How many models do you have for sliding gate openers ?
G6,G8,G15,G20,G30
What is the frequncy of your remote control for this sliding gate motors?
Remote control models are 433Hz.
What is the longest remote control distance in meters?
Long range distance reach 100m.
How many gate motors can be controlled by a remote control?
4 gate motors for a remote control.
Is there a requirement for the MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.
What kind of payments do you support?
Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.
What is your warranty terms?
2 year warranty
How long is your delivery time?
For standard products, 10-25 days are available.
