Heavy Duty Dual Swing Gate Opener 300mm 400mm 500mm 12VDC
Heavy Duty 24v Dc Dual 1000kg Dual Swing Gate Openers For Swing Gate

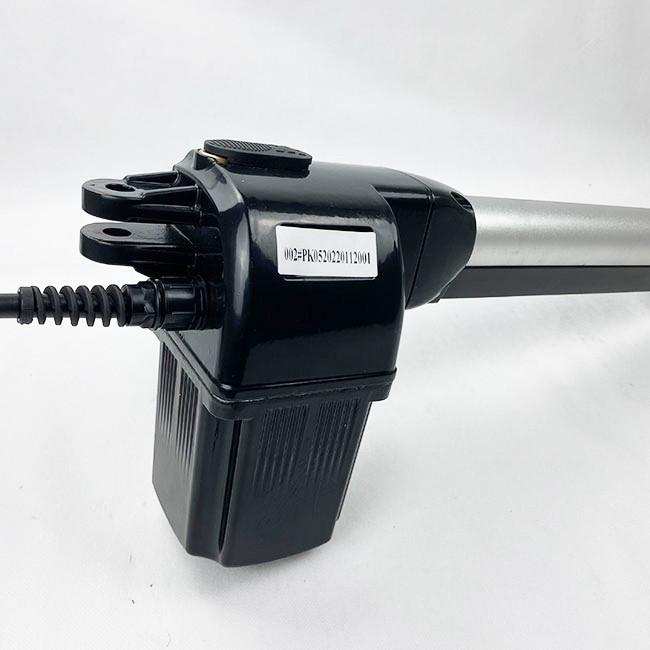

GPK05D is an electromechanical system for automatic opening/closing of swing or folding doors. It is designed with a special release key that releases the movement of the door in the event of a power failure. It can support doors up to 500kg per leaf and is optimized to be quieter.
500kg Automatic Swing gate openers Technical Specifiation
| Output power of motor | 12VDC/24VDC 45W |
| Rotational speed | 3200R PM |
| Rod's running speed | 1.6cm/s |
| Rod's max travel | 300mm 400mm 500mm |
| Max leaf length | 5mX2 |
| Max single-leaf weight | 500Kg |
| Environment Temperature range | -20C~+55C |
| Protection class | IP54 |
| Continual run time | 5min |
Motor voltage: 24VDC
Supply voltage: 240VAC
Maximum gate weight: 500kg
Maximum gate length: 5metres
Kit Includes
2x Arm Gate motors
2x Remotes transmitter with 50m long range
1x Long Range Reflector type Safety Beam
PCB for 300kg swing single arm openers
FAQ
What is your MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.
What is your payment term?
For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.
How long is your product warranty?
Two years when you got goods.
What is the delivery time?
For item in stock, it will take 2-3days to seaport after payment.
