25Ah 3.2V Lithium Battery Square Aluminum Shell LFP
25Ah 3.2V Lithium Battery Square Aluminum Shell EIKTO LFP
Technical Parameters
| NO. | Item | Specification | Remark |
| 1 | Dimension | 19mm*124mm*133mm | Fig.1, 50%SOC,200kgf |
| 2 | Rated Capacity | 25Ah | 25±2℃,1.0C |
| 3 | Nominal Voltage | 3.2V | / |
| 4 | AC Initial Impedance | ≤1.8mΩ |
25±2℃ AC 1KHz measured |
| 5 | Cell Weight | ≈605g | / |
| 6 | Energy Density | 134 | / |
| 7 | Energy Density | 248 | / |
| 8 | Max Charging Voltage | 3.6V | / |
| 9 | Maximum Continuous Charging Current | 1.5C | 25±5℃ |
| 10 | Discharge Cut-off Voltage | 2.5V | / |
| 11 | Max. Continuous Discharging Current | 1.5C | 25±5℃ |
| 12 | Standard cycle life | ≥3000 times 80%Capacity retention | 1C/1C 25℃ |
Product Description
1.Winding process, terminal post heads on same side.
2.Square aluminum shell.
3.Lithium iron phosphate cathode material.
4.CE/UL certified.
5.High rate performance battery.
Product Advantages
1.3.2V25Ah square lithium iron phosphate battery with long cycle life, high safety and good stability.
2.Lithium iron phosphate battery, more stable and safer.
3.Aluminum shell material, lighter weight.
4.Laser welding, higher efficiency.
5.Winding process, high energy density.
6.The charging speed is fast with a special charger, the battery can be fully charged within 40 minutes.

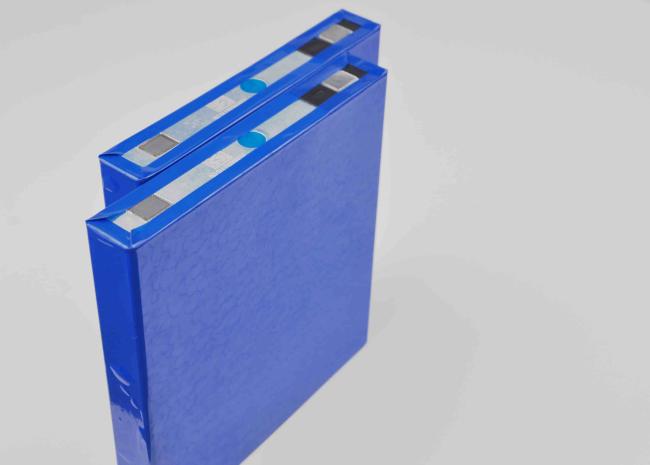

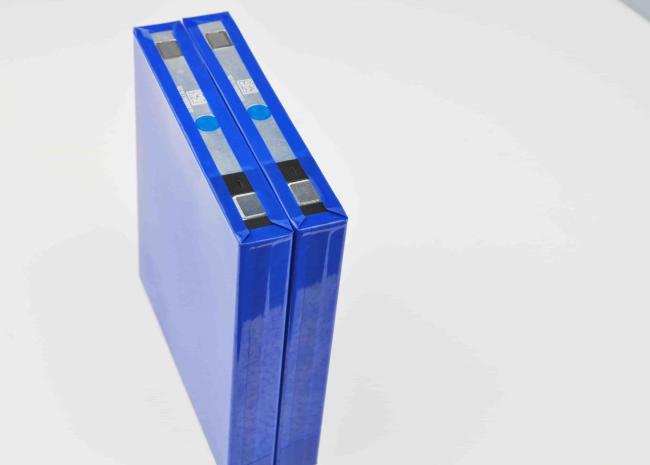

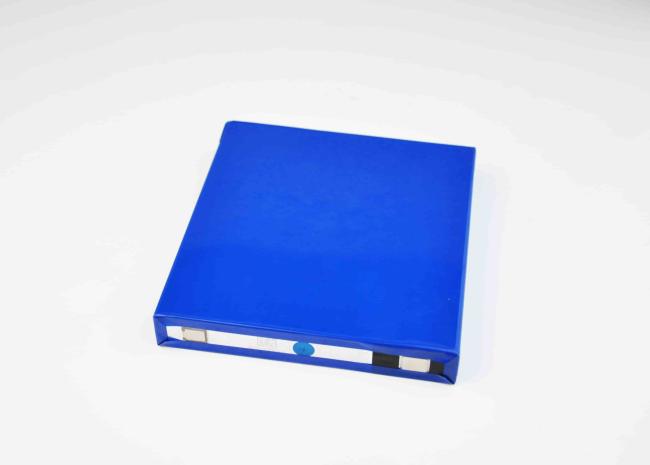

Samples Show
