IP67 Yacht Lithium Battery 51.2V 50Ah 2.56KWh

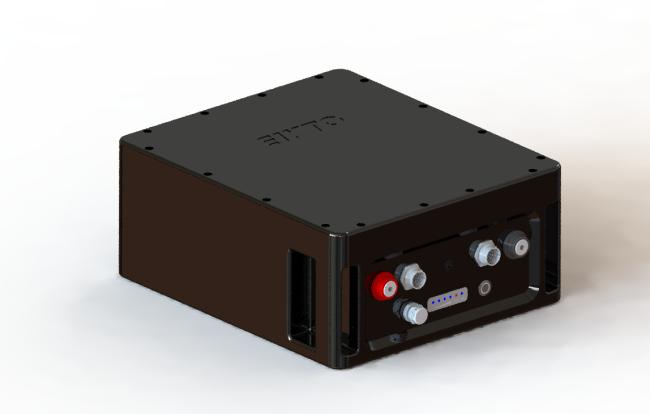

51.2V50Ah IP67 Yacht Lithium Iron Phosphate Battery Y50
Product Description
Anhui EIKTO Battery Co., Ltd. is a global supplier of new energy applications and solutions, In order to meet the market requirement for Lithium iron phosphate power battery system,Anhui EIKTO Battery Co., Ltd. now launch a new yacht lithium iron phosphate battery.The product is rated voltage of 51.2V and capacity of 50Ah.The product is applied to small yachts. The battery can support continuous operation at full power and supports parallel function, and the maximum parallel support is 16.
Technical Parameters
| Product name | Yacht Lithium Iron Phosphate Battery |
| Product combination mode | 2P16S |
| Rated capacity | 50Ah |
| Rated voltage | 51.2V |
| Rated power | 2560Wh |
| (Charging temperature range) | Charging temperature: 0~55℃ |
| Discharge temperature range | Discharge temperature: - 20 ~55℃ |
| Storage temperature | -20~60℃ |
| Working humidity | 10%RH~90%RH |
| Battery pack weight | ≈30kg |
| size | 420mm*480mm*190mm |
| Degree of protection | IP67 |
| Heat dissipation mode | Natural heat dissipation |
| Extended function | External parallel connection (max 16 parallel) |
Features
1,Display function
The battery system can match the power display function, which is usually displayed by different arrangement order of LED lights. At the same time, the system can also be displayed by display screen. The specific display mode can be customized according to customer needs.
2,Communication function
The battery system has two channels of CAN communication and one channel of 485 communication. Therefore, the external communication of products can be realized, such as charger, motor controller or whole ship controller. The specific communication mode can be customized according to the requirements of the whole ship system.
3.The system supports parallel charging and discharging between battery packs of the same specification. In order to prevent the backflow between batteries caused by large voltage difference between parallel batteries, the parameters of other batteries are queried through CAN communication. When the system meets the parallel requirements, it can be powered on in parallel.
Samples Show
Packaging & Delivery
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
