EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm
Battery Lithium Battery Lithium Iron Phosphate Square Aluminum Shell EIKTO Power Sored 3.2V150Ah
Technical Parameters
| NO. | Item | Specification | Remark |
| 1 | Dimension | 40mm*110mm*401mm | Fig.1, 50%SOC,200kgf |
| 2 | Rated Capacity | 150Ah | 25±2℃,1.0C |
| 3 | Nominal Voltage | 3.2V | / |
| 4 | AC Initial Impedance | ≤0.6mΩ |
25±2℃ AC 1KHz measured |
| 5 | Cell Weight | ≈3500g | / |
| 6 | Energy Density | 137 | / |
| 7 | Energy Density | 266 | / |
| 8 | Max Charging Voltage | 3.6V | / |
| 9 | Maximum Continuous Charging Current | 1.5C | 25±5℃ |
| 10 | Discharge Cut-off Voltage | 2.5V | / |
| 11 | Max. Continuous Discharging Current | 1.5C | 25±5℃ |
| 12 | Standard cycle life | ≥4000times 80%Capacity retention | 1C/1C 25℃ |
Product Description
1.terminal post heads on both sides of the battery.
2.CE/UL certified.
3.Winding process of anode and cathode electrode slice.
4.3000 charge & discharge cycles.
5.Lithium iron phosphate is the cathode material.
Product Advantages
1.3.2V150Ah square lithium iron phosphate battery, more stable and safer
2.The charging speed is fast with a special charger, the battery can be fully charged within 40 minutes.
3.Aluminum shell material, lighter weight
4.Laser welding, higher efficiency
5.Winding process, high energy density
6.Long cycle life, high safety and good stability

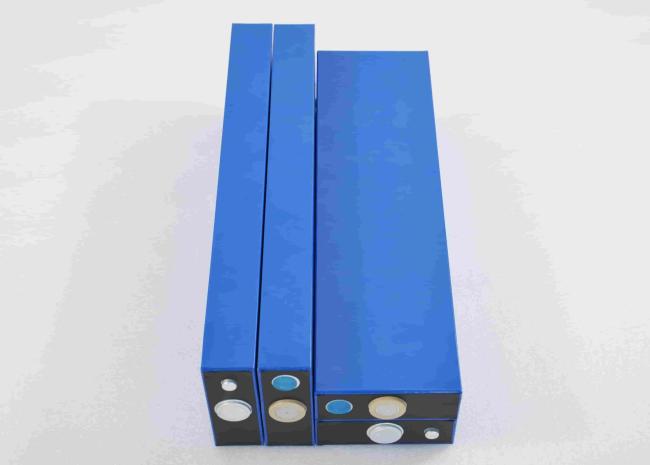

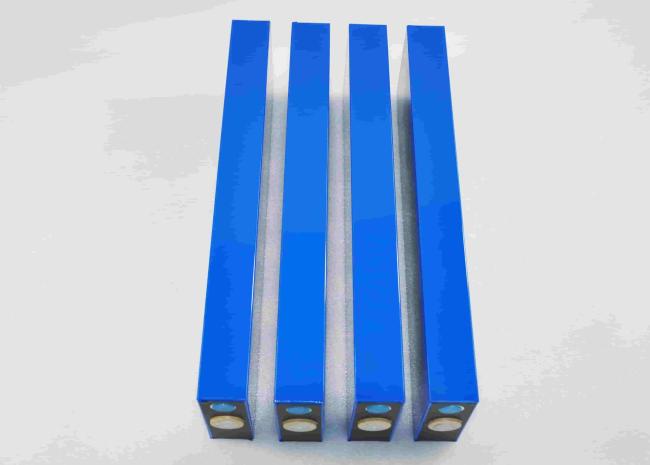

Samples Show
Application
Packaging & Delivery
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
Competitive Advantages
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
