3.2V175Ah Li Ion Battery Cell Stored Energy 175Ah EIKTO Power 3.6Kg
Battery Lithium Battery Lithium Iron Phosphate Square Aluminum Shell EIKTO Power Sored 3.2V175Ah
Technical Parameters
| NO. | Item | Specification | Remark |
| 1 | Dimension | 40mm*110mm*401mm | Fig.1, 50%SOC,200kgf |
| 2 | Rated Capacity | 175Ah | 25±2℃,1.0C |
| 3 | Nominal Voltage | 3.2V | / |
| 4 | AC Initial Impedance | ≤0.6mΩ |
25±2℃ AC 1KHz measured |
| 5 | Cell Weight | ≈3600g | / |
| 6 | Energy Density | 155 | / |
| 7 | Energy Density | 310 | / |
| 8 | Max Charging Voltage | 3.6V | / |
| 9 | Maximum Continuous Charging Current | 1.5C | 25±5℃ |
| 10 | Discharge Cut-off Voltage | 2.5V | / |
| 11 | Max. Continuous Discharging Current | 1.5C | 25±5℃ |
| 12 | Standard cycle life | ≥4000times 80%Capacity retention | 1C/1C 25℃ |
Product Description
1.terminal post heads on both sides of the battery.
2.CE/UL certified.
3.Winding process of anode and cathode electrode slice.
4.3000 charge & discharge cycles.
5.Lithium iron phosphate is the cathode material.
Product Advantages
1.3.2V175Ah square lithium iron phosphate battery.
2.Aluminum alloy shell design, high mechanical strength, conductive to heat dissipation.
3.Structure of terminal post on both sides is conducive to heat dissipation, lower temperature rise and more uniform.
4.The battery adopts winding process with high energy density.
5.Long cycle life, high safety and good stability.

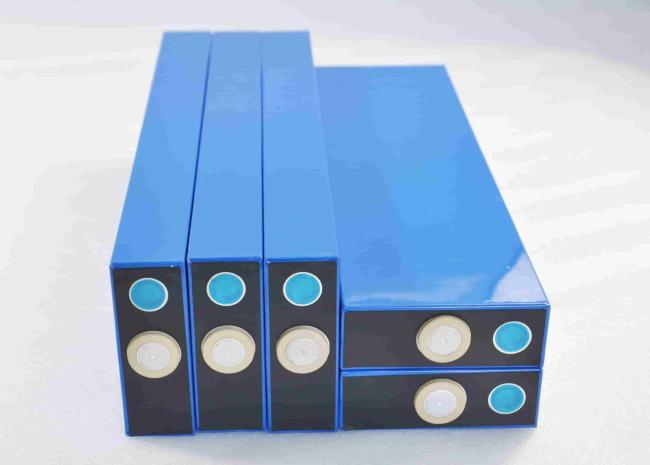

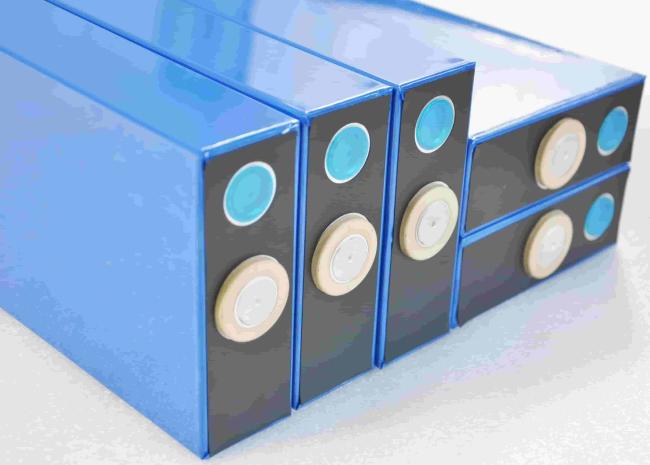

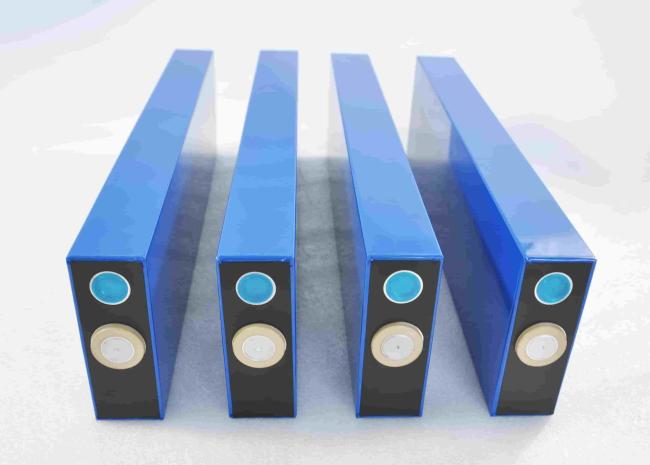

Samples Show
Application
Packaging & Delivery
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
Competitive Advantages
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
