5.184kwh Lithium Battery Module 3.2V 135AH Lithium Ion Battery Module
5.184kwh Square Aluminum Shell M12 EIKTO 3.2V135AH Iron Module 48kg Lithium Battery
Technical Parameters
| NO. | Item | Specification | Remark |
| 1 | Dimension | 524.6mm*427.6mm*119mm | / |
| 2 | Combination mode | 1P12S 2P6S 3P4S | / |
| 3 | Rated Capacity | 135Ah/270Ah/675Ah | 25±2℃,1.0C |
| 4 | Nominal Voltage | 38.4/19.2/12.8V | / |
| 5 | insulation resistance | ≧50MΩ(DC1000V) | 25±2℃ |
| 6 | Module Weight | ≈48kg | / |
| 7 | Module energy | 5.184kwh | / |
| 8 | Max Charging Voltage | 43.2/21.6/14.4V | / |
| 9 | Maximum Continuous Charging Current | 1C | 25±5℃ |
| 10 | Discharge Cut-off Voltage | 30/19.2/10V | / |
| 11 | Max. Continuous Discharging Current | 1C | 25±5℃ |
| 12 | Standard cycle life | ≥4000 times 80%Capacity retention | 1C/1C 25℃ |
Product Description
Lithium battery Lithium iron phosphate Iron Module 3.2V135AH square aluminum shell Heating system
This product is the standard module of EIKTO 12-core lithium iron phosphate battery, which is formed by series and parallel connection of YJT40110413-135AH lithium iron phosphate battery. Laser welding is carried out between the cells using Iron connecting pieces. The Iron material is used as envelop to stabilize the module, which has high structural strength. The module can be equipped with a battery heating system, so that the battery can work normally in low temperature environment. The internal structure of the module is made of flame resistant material, which greatly reduces the risk caused by heating. The module has the advantages of light weight, strong stability, high safety and long cycle life.
Product Advantages
1. Reliable structure: high anti-vibration structure strength;
2. Controllable process: no over welding and false welding to ensure 100% no damage to the cell;
3. Safety design: high safety lithium iron phosphate material system is adopted;
4. Good module stability: strict cell matching conditions, good cell consistency;
5. Heating system: the module can be equipped with heating system to make the battery work normally in low temperature environment.

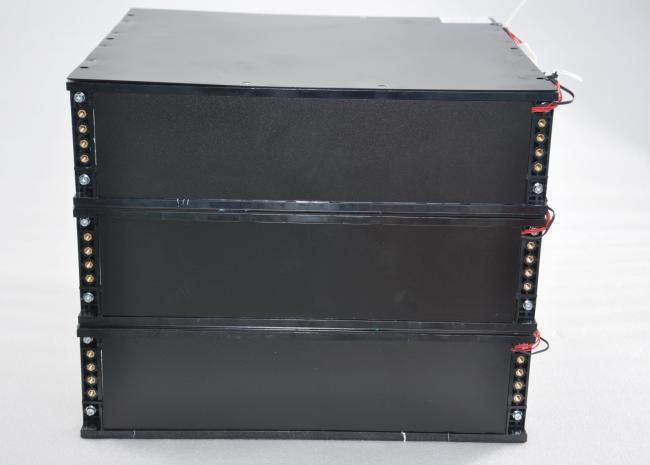

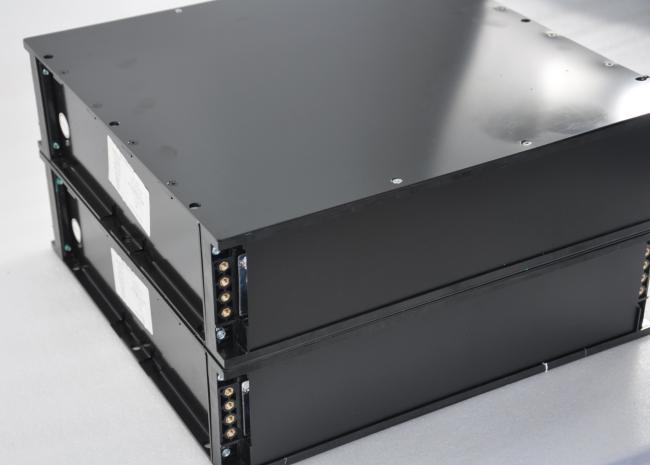

Samples Show
Application
Packaging & Delivery
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
Competitive Advantages
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
