Toyota Forklift Lithium Iron Battery System 51.2V 300Ah
Toyota Forklift Lithium Iron Battery System 51.2V 300Ah
Technical Parameter
| NO. | Project | Performance | Remarks |
| 1 | Dimensions | 956mm*372mm*565mm | / |
| 2 | Serial-parallel Connection | 2P16S | / |
| 3 | Rated Capacity | 300Ah | 25±2℃,1.0C |
| 4 | Nominal Voltage | 51.2V | / |
| 5 | Insulating Resistant | ≧50MΩ(DC500V) | 25±2℃ |
| 6 | Weight | ≈465kg | / |
| 7 | Module Capacity | 15.36kwh | / |
| 8 | Max. Charging Voltage | 57.6 | / |
| 9 | Max. Constant Charging Current | 1C | 25±5℃ |
| 10 | Discharge cut-off Voltage | 38.4 | / |
| 11 | Max. Constant Discharging Current | 1C | 25±5℃ |
| 12 | Standard Cycle Life | ≥4000 times 80%Capacity retention | 1C/1C 25℃ |
Product Description
1.Lithium iron phosphate battery Lithium iron phosphate module 3.2v150Ah Square aluminum enclosure Heating system
2.This lithium iron phosphate battery is a standard module consists of 8-cells, which is made of YJT40110413-150Ah lithium iron phosphate battery in serial-parallel mode
Laser welding is performed between batteries using iron connectors.
3.The iron material is used as the shell to stabilize the module, which has high structural strength.
4.The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.
5.The module has the advantages of light weight, strong stability, high safety and long cycle life.
Product Advantage
1. The box is waterproof IP54, and the structure is firm
2. Reliable electrical performance to meet long-time work
3. Fast charging, safe and reliable;
4. It has remote monitoring and real-time viewing of battery information

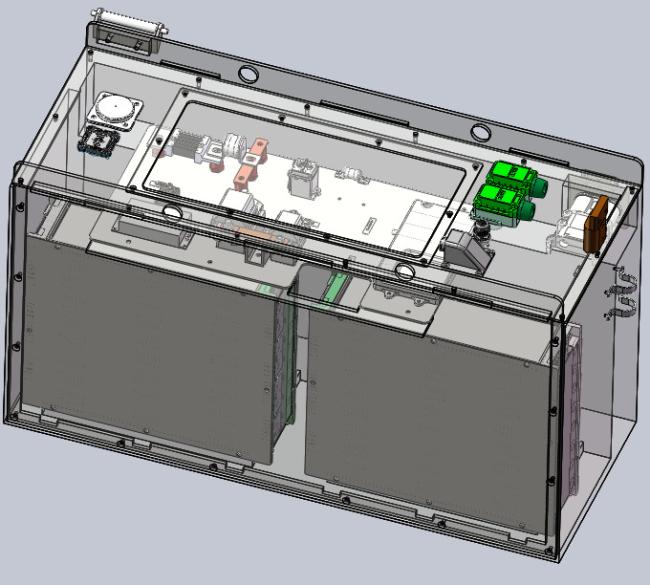

Product Display
Application
The products are widely used in the field of industrial vehicles
