76.8v525ah Loader Battery Lithium Battery Replace Diesel Lead Acid Lithium Battery
76.8v525ah loading vehicle lithium battery can replace diesel and lead-acid lithium battery.
Technical Parameters
| NO. | Item | Specification | Remark |
| 1 | Size |
1028mm*710mm*550mm
|
/ |
| 2 | Combination mode | 3P24S | / |
| 3 | Rated capacity | 525Ah | 25±2℃,1.0C |
| 4 | Nominal voltage | 76.8V | / |
| 5 | High resistance | ≧50MΩ(DC500V) | 25±2℃ |
| 6 | Weight | ≈510kg | / |
| 7 | Total power of module | 40.32kwh | / |
| 8 | Maximum charging voltage | 86.4V | / |
| 9 | Maximum continuous charging current | 0.5C | 25±5℃ |
| 10 | Discharge cut-off voltage | 64.8V | / |
| 11 | Maximum continuous discharge current | 1C | 25±5℃ |
| 12 | Standard cycle life | ≥3000 times 80%Capacity retention | 1C/1C 25℃ |
Product Description

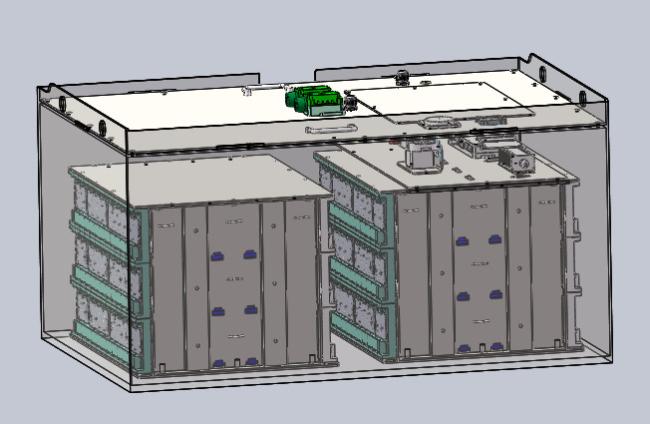

1. This product is EIKTO lithium iron phosphate battery module, which is made of 175Ah lithium iron phosphate battery in series and parallel connection.
2. Use iron connectors for laser welding between batteries.
3, the use of iron material as the shell to stabilize the module, the module has high structural strength.
4. The module can be equipped with battery heating system, so that the battery can work normally in low temperature environment.
5. The internal structure of the module is made of refractory material, which greatly reduces the risk caused by heating.
6, the module has the advantages of light weight, strong stability, high safety, long cycle life and so on.
Product Advantages
1. Reliable structure: high anti vibration structure strength;
2. Controllable process: no over welding and faulty welding, ensuring 100% battery damage;
3. Safety design: adopt high safety lithium iron phosphate material system;
4. Good module stability: strict cell matching conditions, good cell consistency;
5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.
Samples Show
Application
The products are widely used in industrial vehicles, engineering vehicles and other fields.
Packaging & Delivery
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
Competitive Advantages
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
