Heavy Duty Excavator 30Ton Rock Breaker Yakai CTHB 20CrMo Side Type Hydraulic Breaker
Heavy Duty Excavator 30Ton Rock Breaker Yakai CTHB 20CrMo Side Type Hydraulic Breaker
1. Hydraulic Breaker Application
a. Mining: mountain opening, mining, grid screen crushing, secondary crushing
b. Metallurgy: ladle, slag cleaning, furnace dismantling, equipment foundation dismantling
c. Railway: mountain driving, tunnel excavation, road and bridge demolition, roadbed consolidation
d. Highway: highway repair, cement pavement crushing, foundation excavation
e. Municipal gardens: concrete crushing, water, electricity, gas engineering construction, old city renovation
f. Construction: Demolition of old buildings, broken reinforced concrete
g. Ships: hull removal of mussels and rust
h. Others: ice breaking, frozen soil breaking, sand vibrating

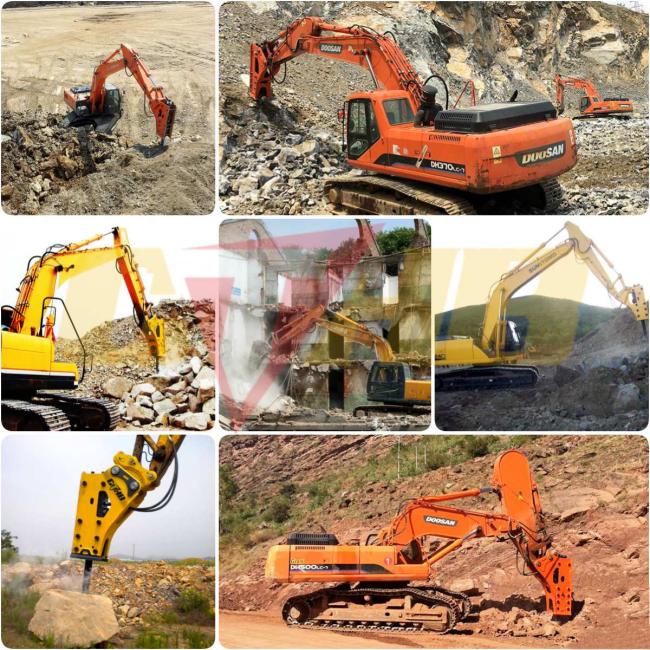

2. Working Shot

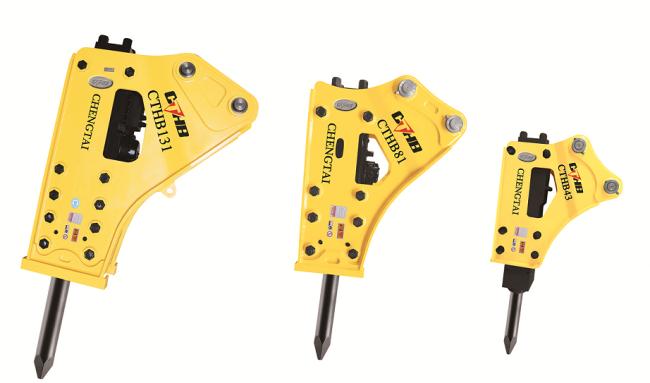

3. Side Type Breaker Hammer Feature
a. Breakers’ overall length reduced.
b. More convenient for chisel to move backwards.
c. Easy maintenance.

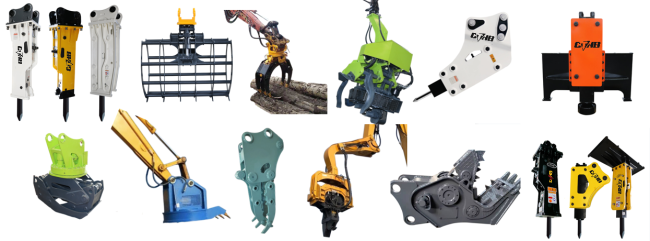

4. Other Types of Breaker Hammer
Box Type Hydraulic Breaker Hammer
Top Type Hydraulic Breaker Hammer
Furukawa Series Hydraulic Breaker Hammer
Skid Steer Type Hydraulic Breaker Hammer
5. How to Choose the Breaker Hammer According to Your Excavator
| Excavator (loader)weight | Excavator (loader)Brand | Suit breaker model | Chisel diameter |
| 0.8-2.5Ton | Any Brand | CTHB10 | 40mm |
| 1.2-3Ton | Any Brand | CTHB20 | 45mm |
| 2.5-4.5Ton | Any Brand | CTHB30 | 53mm |
| 4-7Ton | Any Brand | CTHB40 | 68mm |
| 6-9Ton | Any Brand | CTHB43 | 75mm |
| 7-14Ton | Any Brand | CTHB45 | 85mm |
| 10-15Ton | Any Brand | CTHB50 | 100mm |
| 18-26Ton | Any Brand | CTHB81 | 140mm |
| 28-35Ton | Any Brand | CTHB121 | 155mm |
| 30-45Ton | Any Brand | CTHB131 | 165mm |
| 30-50Ton | Any Brand | CTHB140 | 165mm |
| 35-45Ton | Any Brand | CTHB151 | 175mm |
| 40-55Ton | Any Brand | CTHB151F | 175mm |
| 45-55Ton | Any Brand | CTHB190 | 190mm |
