Double Head FAG Drum Cutter Excavator Q235B Rock Grinders Hydraulic
YAKAI Double Head Drum Hydraulic Rock Cutter For Mini Excavator For Sale China Supplier
Excavator Drum Cutter Description

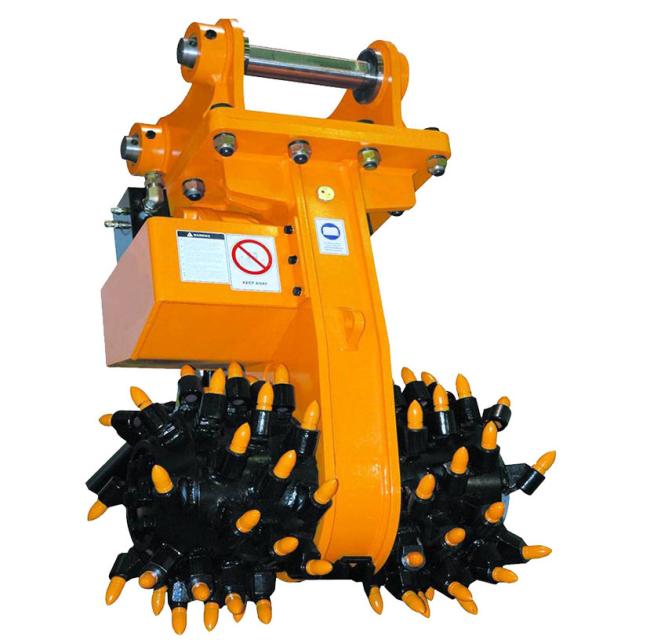

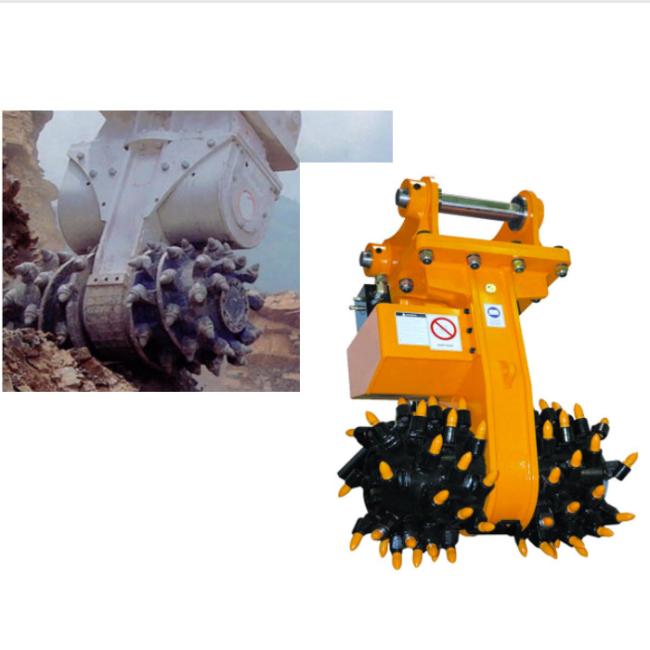

The Excavator drum cutter is composed of a hydraulic motor, out body, and one or two drums equipped with some number picks on it. One drum is a vertical hydraulic drum cutter, two drums are horizontal. When the excavator hydraulic system offers hydraulic power to the drum cutter motor, it would drive the drums to rotate. Then those picks start to rotate at a high frequency to deal with demolition work (rock, concrete), milling, tunneling, softening the frozen ground and etc.
Excavator Rock Grinder Machine Specification
| Model | DY-DC780 | DY-DC1000 | DY-DC1250 | DY-DC1350 |
|---|---|---|---|---|
| Recommend Excavator Weight (ton) | 10-20 | 20-40 | 40-55 | 60-80 |
| Rated Power (kW) | 70 | 120 | 160 | 200 |
| Machine Height A(mm) | 1160 | 1450 | 1670 | 1780 |
| Machine Width B (mm) | 780 | 1000 | 1250 | 1350 |
| Head Diameter C (mm) | 560 | 680 | 700 | 810 |
| Machine Weight (kg) | 850 | 1850 | 2600 | 3600 |
| Working Flow (L/min) | 120-150 | 200-300 | 300-400 | 350-450 |
| Recommended RPM (RPM) | 85 | 80 | 70 | 55 |
| Working Pressure (bar) | 380 | 380 | 380 | 380 |
| Max Output Torque(m) | 11000 | 25000 | 36000 | 50000 |
| Number of Cutters (Pcs) | 48 | 48 | 56 | 64 |
* The Parameter above may change with the technology improvement, will not notice additionally, please understand.
1. Max oil flow and pressure shown in the table cannot be achieved at the same time. Contact us to know hydraulic requirements under actual conditions.
2. Values for torque and cutting force shown in the table above are those achieved with the theoretical options. When not sure about the options, please contact us.
Features of Excavator Mounted Drum Cutters
- The disturbance to the surrounding rock is reduced, and the rock strength decline is caused by blasting vibration which is not easy to cause large-scale deformation and local collapse.
- Long service life, durable milling head bearing structure, and wear-resistant cutter head.
- Widely Apply, It can cut medium hard and below medium hard rock in large areas.
- Relatively Low noise, Can be used in multiple operating environments
Application of Excavator Hydraulic Drum Cutters
The Hydraulic drum cutter can be supplied with either scaling/grinding or rock cutting drums. Mainly used for rock or concrete walls, ditching, removal of soft rock, and frozen soil.
It is widely used in the excavation of tunnels, ditches, and municipal pipelines. Road fragmentation, mining, rock, and frozen soil excavation. Open-pit coal mine excavation, surface creation, steel industry, forestry, and other construction fields.
In most cases, the drum cutter is only used for the excavation of the tunnel outline, but in the middle and low hardness of the rock and frozen soil, and other suitable strata, the milling, and digging machine can be directly used for tunnel tunneling; Suitable for blasting construction of the lot; It can easily solve the problems of undercutting and repairing in the tunnel, gouging on the inner surface and excavation of side ditch.
