Intelligent Robot Vacuum Cleaner Battery 25.6V 10Ah
25.6V 10Ah LFP Battery
Features of robot vacuum cleaner battery:
• Power Lithuim-ion battery Pack
• Use in Electric cleaning devices, Vacuum Cleaning Robot ect.
• Protection IC,stable working
• Long running life, High stability, Low maintenance costs
• High capacity density for longer miles on a charge
• IP42 Rating
• Wide operating temperature range
• Low-power consumption,Long standby time
• Portection with Overcharge/Overdischarge/Overcurrent/Short circuit/temperature protection to ensure safety while using
• RoHS eco-friendly design
• Pack approved by IEC62619/UN38.3 certification
• PCM & cell double protection to ensure the battery safety
| 1.Specification of Robotic Vacuum battery: |
|
Item
|
Parameter
|
| Model | 25.6V 10Ah LFP Battery |
| Model Capacity | 10Ah |
| Minimum Capacity (0.5C,A) | 9.6Ah |
| Rated Voltage | 25.6V |
| Max Charge Voltage | 29V |
| Cut-Off Voltage | 17.6V |
| Standard Charge And Discharge Current | 3A |
| Max Continuous Charge Current | 5A |
| Max Continuous Discharge Current | 10A |
| Weight (Approx. Includes Case) | ～2.5Kg |
| Impedance (Max, At 1000Hz.) | ≤80mΩ |
| The Factory Voltage | ≧25.6V |
| Charge Method (CC) | 3A 29.2VCut Off |
| Charge Method (CV) | 29.2V 0.3ACut Off |
| Operating Temperature Charging | 0℃～45℃ |
| Operating Temperature Discharge | -20℃～60℃ |
| Operating Temperature Storage | -20℃～45℃ |

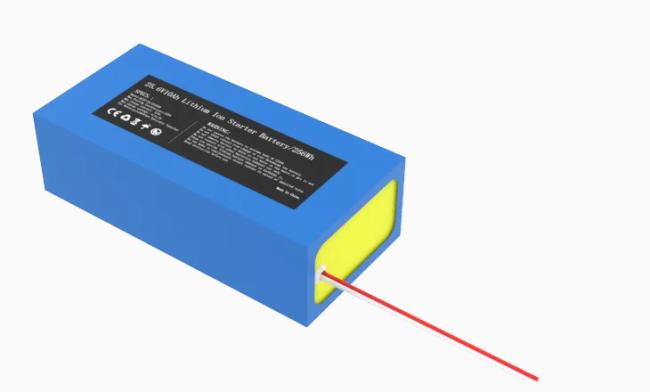

Outline Drawing of Robotic Vacuum battery:
Using high-quality lithium iron phosphate batteries, resistance welding assembly, reasonable arrangement scheme to reduce the internal voltage difference of the battery pack, glass fiber board insulation, PVC packaging molding, meeting IP42 requirements, actual size: 227mm*97mm*68mm, compact and convenient.
