LiFePO4 Battery 48V 60AH 48V 80AH Golf Cart Lithium  Battery Pack

Main application:Golf cart,golf trolly,tractor,forklift,sweeper ,sightseeing bus,etc.

Quick Details:

Nominal Voltage :51.2V                             Nominal Capacity:60AH/80Ah         Resistance:≤50mΩ

Efficiency:99%                                           Self Discharge:＜3% per month

DISCHARGE SPECIFICATIONS               Discharge Temperature:-20ºC to 60 ºC

Max. Cont. Discharge:60A/80A                  Peak Discharge Current:200A         Recommend Cut-off voltage:42V

CHARGE SPECIFICATION
Recommended Charge Current:15-20A     Max. Charge Current:60A/80A        Recommended Charge Voltage:58.4V
Charge Current (-20 to -10 ºC):≤0.05 C      Charge Temperature:0 ºC to 55 ºC

MECHANICAL SPECIFICATIONS
Weight:26KG/34KG                                   Case Material:Metal                          Enclosure Protection:IP56

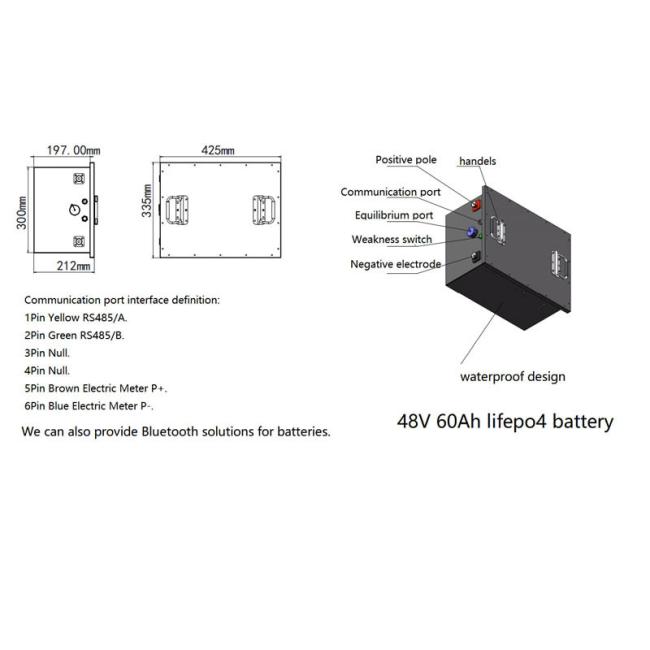

Specification:

FAQ

Q1: What’s the lead time for mass production?

It depends on the actual situation. 3-7 days with stock, if without stock, that will be depends on your order quantity,

normally needs 20-25 days.

Q2: How do you control the quality?

We have ISO9001 certification, from incoming materials to production, and then to delivery, there are corresponding

QC control. Battery cells will be divided before assembly, and aging test will be conducted before the battery pack

leaves the factory to confirm that it is normal before shipment.
