Lifepo4 Golf Cart Lithium Battery Pack 48V 100AH 105AH 200AH With Communication
Golf Cart Lithium Battery Pack LiFEPO4 48V 100AH 105AH 200AH lithium ion batteries with Communication
ELECTRICAL SPECIFICATION
Nominal Voltage :51.2V Nominal Capacity:72AH/105Ah Energy:3840Wh/5376Wh
Resistance:≤50mΩ Efficiency:99% Self Discharge:＜3% per month
DISCHARGE SPECIFICATIONS
Max. Cont. Discharge:100A Peak Discharge Current:200A Recommend Cut-off voltage:42V
CHARGE SPECIFICATION
Recommended Charge Current:20-40A Max. Charge Current:100A Recommended Charge Voltage:58.4V
Charge Current (-20 to -10 ºC):≤0.05 C
MECHANICAL SPECIFICATIONS
Dimensions(L*W*H):258mm*311mm*335mm(Can be customised) Weight:32KG/42KG
Case Material:Metal Enclosure Protection:IP42
TEMPERATURE SPECIFICATION CHARGE SPECIFICATION
Discharge Temperature:-20ºC to 60 ºC Charge Temperature:0 ºC to 55 ºC
Storage Temperature:-20ºC to 40 ºC BMS High Temperature:75 ºC
Specification:
| Model | LV48100 | ||||
| Nominal voltage | 51.2V | ||||
| Rated capacity | 100AH | ||||
| Battery impedance | ≤50mQ | ||||
| Shipment voltage | 48-58V | ||||
| Limited charging voltage | 58.4V | ||||
| Maximum Charging Current | Ambienttemperature | Relativehumidity | Chargingcurrent | Limitedchargingvoltage | Cut-offcurrent of CV |
| 0°℃～15°C | 65±20% | Max.0.2C | Max. 58.4V | 0.005C | |
| 15°C～45°C | 65±20% | Max.0.5C | Max. 58.4V | 0.005C | |
| Recommendation ChargingCurrent | 0.5C 50A | ||||
| Recommendation DischargingCurrent | 0.5C 50A | ||||
| Maximum Discharging Current | 1C 100A | ||||
| Discharge cut-off voltage | 40v | ||||
| Battery weight (Approx.) | 45.5kg | ||||
| Working temperature range | Charge:0℃C～45°℃ | ||||
| Discharge:-20°C～60°C | |||||
| Communication protocols | CAN,RS485,TCP/IP | ||||

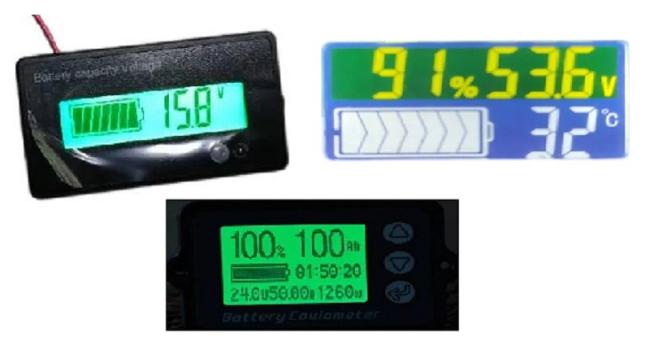

3 Display Ways
