Lifepo4 SLA Replacement 36V 50Ah 12s1p LifePO4 battery Customized Golf car, E-bike, E-scooter BMS
Lifepo4 SLA Replacement 36V 50Ah 12s1p LifePO4 battery Customized Golf car, E-bike, E-scooter BMS
Description:
Quick Details
Place of Origin: Guangdong, China Brand Name: OKTANMAX
Model Number: OKSLA36V50Ah Battery Type: LiFePO4
Battery type: 12S1P3650 Voltage: 36 v
Capacity: 50 Ah Weight: 27 KG
Certificate: CE/RoHS/UN38.3/MSDS Cycle life: 3500 Times
Application: E-bike UPS, Golf car
Specification:
| Type :UBT-12S1P050 | Battery Pack Specifications | 36V 50Ah | ||
| Technical specification | Chemistry | Lifepo4 | ||
| Nominal Voltage(V) | 38 V | |||
| Nominal Capacity(AH) | 50 Ah | |||
| Stored energy(Wh/kg) | 1.92 KWH | |||
| Life cycles | ＞3500 times | |||
| Self discharge(per month) | Max 3% | |||
| Charging time | Standard charge | 5.0 h | ||
| Quick charge | 2.0 h | |||
| Standard discharge current |
Maximun discharge | 103 A (10 s) |
||
| Standard charge | Charge current | 22 A | ||

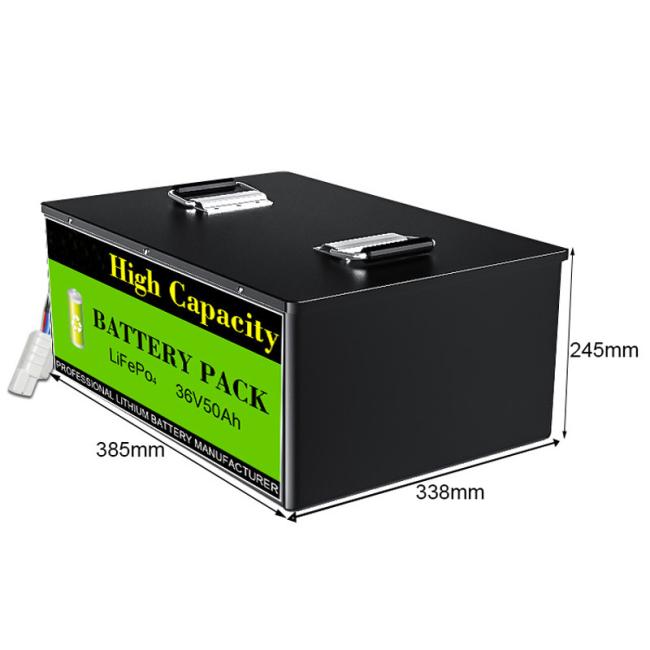

| Dimension (cm) |
Height | 385 mm | ||
| Width | 338 mm | |||
| Length | 245 mm | |||
| General Characteristics | IP Rating | IP 67 | ||
| Weight lbs (kg) |
59 (27) |
|||
| Cell assembly | LF50K (3.2 VB) |
|||
| Cell combination | 12S1P | |||
| Environmet Temp.range |
storage | 1 year | -32 °F~95 °F (0 ℃~35 ℃-) |
|
| 1 month | -4 °F~113 °F (-20 ℃~45 ℃) |
|||
| / | Discharge | -4 °F~131 °F (-20 ℃~55 ℃) |
||
| / | Charge | 32 °F~131 °F (0℃~55 ℃) |
||
Why Choose Us?
1. High Quality, safety in use;
2. Factory background;
3. Competitive price;
4. Low internal resistance;
5. Discharge smoothly;
6. 1000 times cycle life;
7. Extensive in use, dynamic energy;
