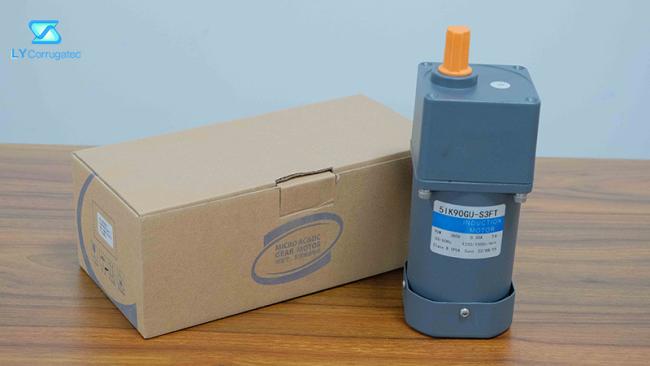

Three phase Carton Machine Spare Parts 90W AC Gear Induction Motor
Carton Machine Spare Parts 90W AC Gear Motor Three Phase Induction Motor
Product Parameter:
|
Model & Type Upper: Pinion Shaft |
Output Power W |
Voltage | Frequency | Current | Starting Torque mN.m | Rated Torque mN.m | Rated Speed r/min |
Capacitor µF |
|
| Lead Wire Type | Terminal Box Type | ||||||||
|
5IK90GU-AF (5IK90A-AF) |
5IK90GU-AFT (5IK90A-AFT) |
90 | 1ph 100 | 50 | 1.55 | 450 | 700 | 1250 | 25.0 |
| 60 | 1.85 | 570 | 1550 | ||||||
|
5IK90GU-EF (5IK90A-EF) |
5IK90GU-EFT (5IK90A-EFT) |
90 | 1ph 110 | 60 | 1.40 | 500 | 570 | 1550 | 20.0 |
| 1ph 120 | 1.45 | ||||||||
|
5IK90GU-CF (5IK90A-CF) |
5IK90GU-CFT (5IK90A-CFT) |
90 | 1ph 220 | 50 | 0.72 | 450 | 700 | 1250 | 5.0 |
| 1ph 230 | 0.70 | ||||||||
|
5IK90GU-HF (5IK90A-HF) |
5IK90GU-HFT (5IK90A-HFT) |
90 | 1ph 220 | 60 | 0.71 | 450 | 570 | 1550 | 5.0 |
| 1ph 230 | 0.75 | ||||||||
|
5IK90GU-SF (5IK90A-SF) |
5IK90GU-SFT (5IK90A-SFT) |
90 | 3ph 220 | 50 | 0.60 | 1350 | 700 | 1250 | - |
| 60 | 0.55 | 1100 | 570 | 1550 | |||||
|
5IK90GU-SF (5IK90A-S3F) |
5IK90GU-SFT (5IK90A-S3FT) |
90 | 3ph 380 | 50 | 0.35 | 1350 | 700 | 1250 | - |
| 60 | 0.32 | 1100 | 570 | 1550 | |||||
Product Feature:
AC GEAR MOTOR is widely used in packaging machinery, electronic industry, entertainment equipment, etc. The base numbers are: 60, 70, 80, 90, 104, which have the advantages of stable operation, low noise, large starting torque, high transmission efficiency and long service life. Power 6-300W, voltage: 12-220VDC, reduction ratio 3-200K
