76.2mm Round Cutting Blade Melt Blown Cloth Fabric Rotary Pneumatic Knife
76.2mm Round Blade Melt Blown Cloth Fabric Cutter Rotary Pneumatic Knife
Product Paramter
| Specification | Outer Diameter | Inner Diameter | Thickness | Edge Thickness | Material |
| 76.2*17*2.2/5 | 76.2 | 17 | 5 | 2.2 | SKD11 |
| 76.2*17*3/5 | 76.2 | 17 | 5 | 3 | |
| 76.2*19*2.2/6 | 76.2 | 19 | 6 | 2.2 | |
| 76.2*19*3/6 | 76.2 | 19 | 6 | 3 | |
| 76.2*22*3/6 | 76.2 | 22 | 6 | 3 |
Adopt swallowtail groove design
The Swallowtail groove is the base that holds the pneumatic slitting knife holder to the device.
It uses aluminum alloy profiles, integrated molding, light weight, accurate size, axial reservation of two holes,can be installed as a side plate. Also be applied for the use of gas supply tubes, the surface using anodic oxidation treatment, can be directly installed and used.

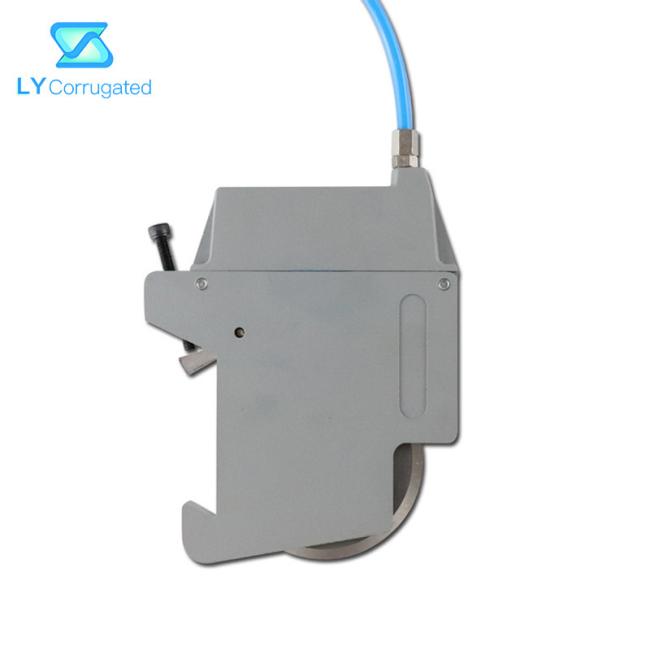

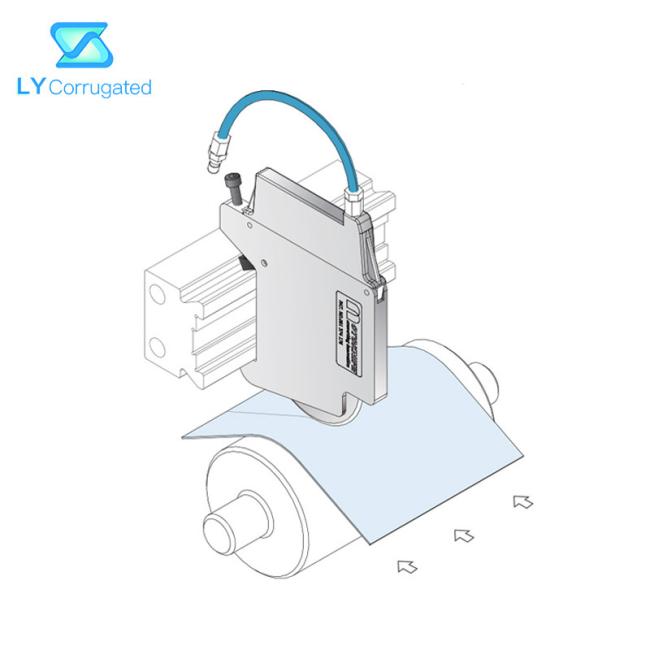

Pneumatic Slitting Knife Holder
The air pressure slitting knife set is suitable for the occasion where the air pressure knife is required for narrow width slitting, and the minimum slitting width is 10MM.
The relatively standard cutter set not only overcomes the design difficulty of narrow tool holder thickness, but also has the same cutting capacity with the standard cutter set in the overall strength design. In addition, the installation and use methods are the same as those of the standard type.
The standard air pressure slitting cutter can quickly match with the cutter to achieve accurate tool arrangement and positioning, and has multiple convenient use designs such as time-saving, fast and stable
