200rpm Hydraulic Rotary Joint For Corrugated Machine Single Double Facer
Hydraulic Rotary Joint For Corrugated Machine Single Facer Double Facer
Feature
Double Support Self Lubrication
Convex Spherical Seal
Good Sealing Performance And Long Service Life
Convenient Maintenance

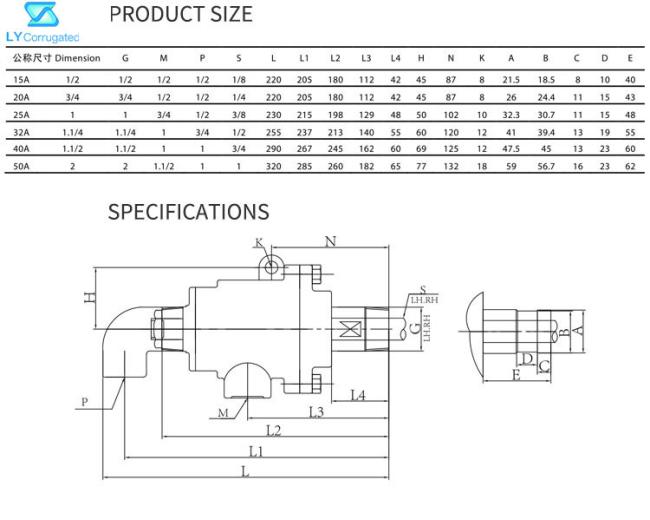

Product Parameter
| Application |
Corrugated Machine Single Facer Double Facer |
|
Max. Speed
|
200rpm
|
|
Max. Temperature
|
250 ºC
|
|
Max. Pressure
|
2.0MPa
|
|
Media
|
Steam, Hot Oil
|
|
Material
|
Stainless Steel/Carbon Graphite/Carbon Fiber
|
Rotary Joint
HFR rotary joint is a spherical sealing structure, self-supporting and external compensation design. Relying on the spring to push the shell to move backward along the axial direction to compensate the seal wear and complete the seal isolation between the internal medium and the external air. Therefore, it needs reasonable installation and regular maintenance to ensure the use of products in the equipment.
