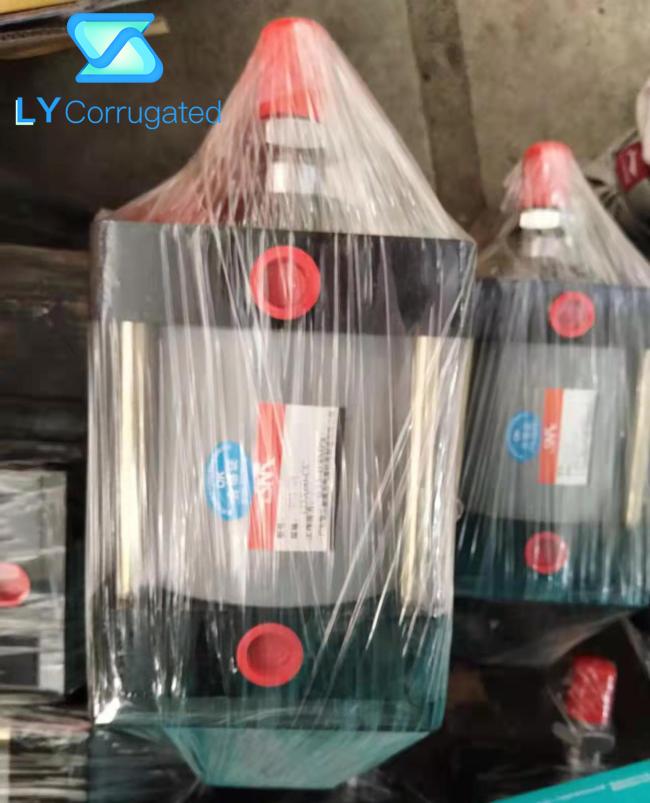

Aluminum Alloy Pneumatic Valve Air Piston Cylinder For Single Facer Corrugated Machine
Aluminum Alloy Pneumatic Valve Air Piston Cylinder For Single Facer Corrugated Machine
Product Parameter
| Model | QGA QGB | QGAI QGBI | ||||||||||
| Inner Dia(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 400 | 250 | 320 |
| Max Stroke(mm) | 500 | 800 | 1000 | 2000 | ||||||||
| Working Pressure (bar) | 1.5~8 | |||||||||||
| Proof Pressure(bar) | 12 | |||||||||||
| Working Temperature | -25~80(not under the freeze condition) | |||||||||||
| Working Medium | Compressed air with oil mist | |||||||||||
Features
1. The cylinder diameter is from Φ32 to Φ400, and extended stroke cylinders can also be customized.
2. For the cylinder diameter is Φ32～Φ100, the front and rear cover materials of the cylinder are aluminum alloy, and the cylinder barrel is a precision aluminum tube treated by hard anodizing. The front and rear end covers of the cylinder with a diameter of Φ125～Φ400 are cast iron, and the cylinder barrel is a precision seamless steel pipe with hard chrome plating.
3. There are many kinds of installation accessories and connectors to meet various purposes.
