3/5/7 Ply Corrugated Cardboard Production Line 300M/MIN 50KW Down Stacker Dry End

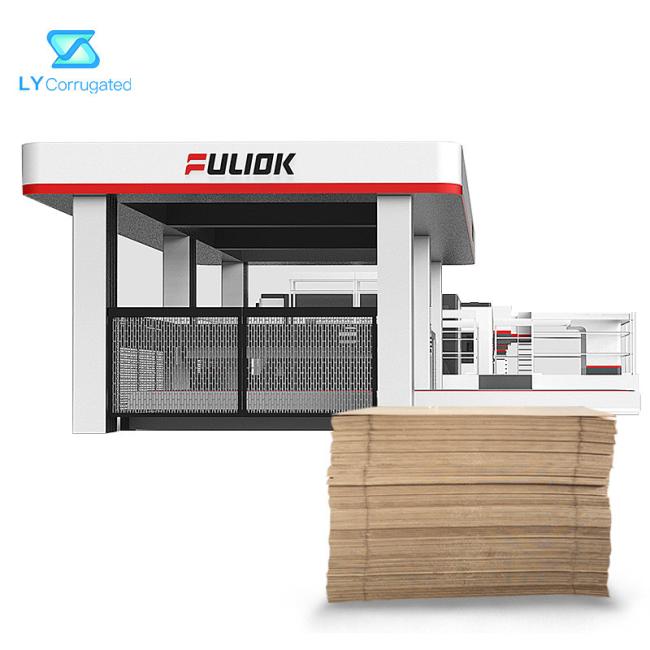

Down Stacker Dry-End Machine For 3/5/7 ply Corrugated Cardboard Sheet Production Line
Equipment Parameter:
| EFFECTIVE WIDTH | 1800,2000,2200,2500 |
| MAX. SPEED | 300M/MIN |
| STACKING LENGTH | 500~3200MM |
| STACKING HEIGHT | 1500MM |
| TOTAL POWER | 50KW |
Feature:
★ THERE ARE 4 SECTIONS FOR CONVEY. THE 1ST SECTION FEED PAPER BOARD STEADY. PAPER IS PRESSED BY 4 SETS OF CARBON FIBER BAR PRESSING BARS, TO AVOID WARPING, CRIMPING, AND OFF TRACKIN.
★ THE SECOND SECTION SMOOTH TRANSITION. THE THIRD SECOND SPEED UP AND DETACH. THE FORTH SECTION TRANSFER THE PAPER STEADYLY TO THE PAPER OUTPUT PLATFORM
★ AUTO COUNTING, AUTO STACK CHANGING, ORDER CHANGING, AND ORDER ADDING.
★ CRAWLER-TYPE PAPER OUTPUT PLATFORM, AC SERVO CONTROL THE OUTPUT PLATFORM RISE AND DOWN.
★ PAPER FULL STACKING BAFFLES ARE CONTROLED BY SERVO MOTOR. AUTO CONTROL THE FRONT &BACK ACCORDING TO ORDER LENGTH. UP AND DOWN ARE CONTROLED BY AIR CYLINDER AND LINEAR GUIDEWAY
★ WHEN STACKING REACH THE SETTING QUANTITY, COULD AUTO HORIZONTAL OUT PUT SMOOTH & STEADY.
★ EQUIPPED WITH AUTO TRANSMISSION RACK, ENTER TO UNPOWERED TRANSMISSION RACK FOR PACKING.
★ STANDARD INDUSTRIAL AIR CONDITIONING, ELECTRICAL EQUIPMENTS ARE WORK UNDER DUST-FREE, CONSTANT TEMPERATURE, AND CONSTANT HUMIDITY ENVIRONMENT.
★ COULD CONNECT WITH CENTRAL MONITORING SYSTEM, AND ACHIEVE AUTO ORDER CHANGING AND ORDER MANAGEMENT
