CF 2 1/4 Stud Type Track Roller CF 2 1/4 S Sealed Roller Bearing For Offset Printing Machine

           CF-2 1/4-S CF-2 1/4 Sealed Stud Type Cam Follower Bearings for Offset Printing Machine

Features of CF...S Stud Type Cam Follower

CF This model is a low-price Cam Follow having a driver groove or hexagon socket in the stud head. The GCr15 Bearing steel type (symbol M) is optimal for clean room applications since it does not develop rust from external atmosphere and generates little dust.

The outer ring of the bolted roller bearing is axially guided by the flange on the bolt and the retaining ring fixed on the bolt, which can bear heavier loads and medium speeds. The outer ring of the bearing is made of high-quality bearing steel material, and the bolt shaft is made of high-quality alloy steel through carburizing and quenching, thus ensuring a certain toughness and relatively high hardness. Because there are more grease storage spaces inside the bearing, the lubrication cycle is long, and it has a certain toughness and can withstand impact loads.

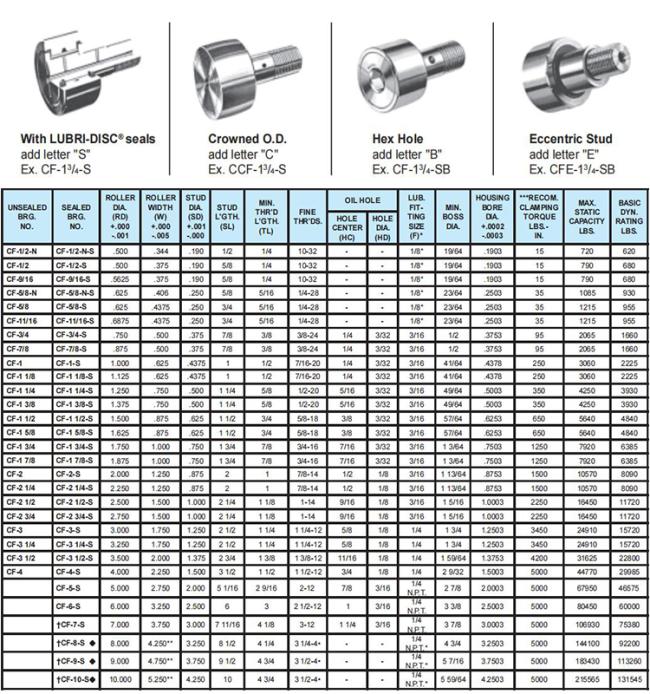

Dimensions and Capacities of CF Stud Type Cam Follower Bearing
