Blackening Linear Motion Bearing Single Closed LM 20 UU For Stepper Motor
Price:
USD5-USD8 PER PIECE
MOQ:
1 PIECE
Delivery Time:
2 Days
Brand:
BLUEN
Product Description
LM20UU Closed Type Linear bearing for Stepper Motor

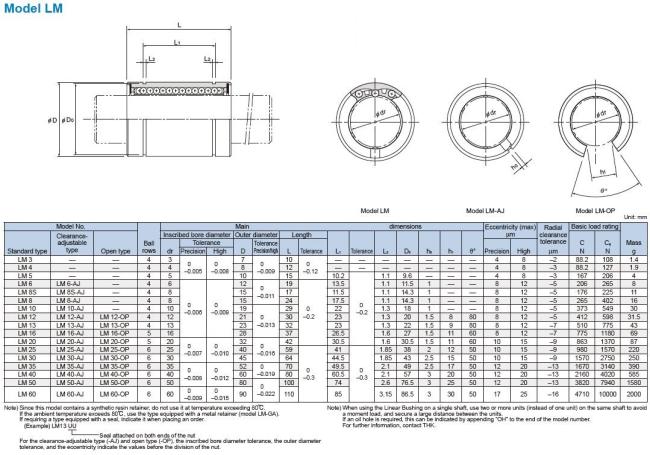

Dimensions and Capacities
Unlike typical bearings that enable circular motion, linear bearings promote movement in a straight line.
This is generally accomplished with the use of ball or roller bearings loaded onto a track that supports a surface that can be moved back and forth, such as a table. A common type of linear bearing is found in a filing cabinet, permitting the drawers to be opened and closed with ease.
These bearings are perfect for linear motion on your 3D Printer, Robotic Systems, Gym Equipment, Printing Press, Motion Mechanism, CNC Machinery or any other applications.
| TYPE | Straight | Motion | Linear Motion |
|---|---|---|---|
| Style | Standard Form | Outer Cylinder Material | [Steel] Bearing Steel |
| Outer Cylinder Surface Finish | [None] No Surface Treatment | For Shaft Diameter(mm) | 20 |
| Overall Length L(mm) | 42 | Lubrication Type | Anti-Rust Only (customer needs to add own Grease) |
| O.D. D(mm) | 32 | Type | Standard |
| Length | Standard | Ball Recirculating Type | Single |
| Basic Dynamic Load Rating (Details)(N) | 863 | Basic Static Load Rating(N) | 1370 |
| Precision | High Grade | Inscribed Bore Diameter Tolerance(mm) | 0/-0.010 |
| Eccentricity(µm) | 15 | The material of a ball | Steel |
| Seal Option | UU: Seal attached on both ends | Retainer Material | Resin |
| Operating Temperature Max(°C) | 80 |
