BK1410 Roller Bearing Needle Gcr15 Flat Needle Bearing BK Series
Price:
USD0.2-USD0.5PER PIECE
MOQ:
1 PIECE
Delivery Time:
2 Days
Brand:
BLUEN
Product Description
BK Series BK1410 Flat End Needle Roller Bearings
Features
The drawn cup needle roller bearings with open ends of the HK series consist of a thin outer ring and a needle cage.
The needle cage consists of a sheet steel cage that holds a large number of needle rollers together and thus prevents them from falling out. The drawn cup needle roller bearings are closed on one side.
- Drawn cup needle roller bearing for applications with high dynamic loads
- Drawn steel outer shell (cup) has a reduced cross-section for use in restricted spaces
- Through-hardened, high-carbon chromium steel rollers for heat tolerance and durability under heavy loads
- Lip contact seals on both ends to help retain lubricants and exclude contaminants
- Steel cage guides and evenly spaces rollers for reduced friction, vibration, and noise

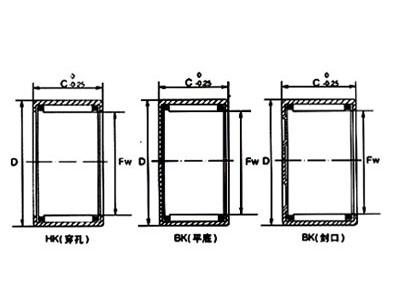

Dimensions and Capacities
Bore ranges from 4-50mm
|
Shaft Diameter |
Bearing Designation |
Mass
Approx |
Boundary Dimensions |
Basic Load Rating |
Limiting Speed |
||||
|
Current |
Oreginal Code |
Fw | D | C | Cr Dynamic |
Cor Static |
Oil |
||
| mm | g | mm | N | rpm | |||||
| 10 | BK10*16*10 | 6.8 | 10 | 16 | 10 | 6800 | 8800 | 18000 | |
| HK10*16*12 | DB1012 | 7.5 | 10 | 16 | 12 | 6800 | 8800 | 18000 | |
| HK10*16*15 | 7942/10 | 11 | 10 | 16 | 15 | 6800 | 8800 | 18000 | |
| HK10*16*15 | 11.5 | 10 | 17 | 15 | 7200 | 8000 | 19000 | ||
| HK10*16*12 | 8.5 | 10 | 18 | 12 | 7200 | 8000 | 19000 | ||
| 12 | HK1208 | 37941/12 | 3.3 | 12 | 16 | 8 | 7200 | 8000 | 19000 |
| HK1210 | 57941/12 | 4.6 | 12 | 16 | 10 | 4150 | 5800 | 19000 | |
| BK1210 | 55941/12 | 5.2 | 12 | 16 | 10 | 4150 | 5800 | 19000 | |
| HK1212 | 67941/12 | 5.6 | 12 | 16 | 12 | 3800 | 5100 | 15000 | |
| BK1212 | 65941/12 | 6.2 | 12 | 16 | 12 | 3800 | 5100 | 15000 | |
| HK12*17*12 | 7941/12 | 7.5 | 12 | 17 | 12 | 5100 | 7000 | 15000 | |
| HK12*17*15 | 7942/12 | 9.5 | 12 | 17 | 15 | 5100 | 7000 | 15000 | |
| HK12*17*18 | 7943/12 | 11 | 12 | 17 | 18 | 5100 | 700 | 15000 | |
| HK12*18*12 | 37942/12 | 9.1 | 12 | 18 | 12 | 5500 | 6300 | 17000 | |
| BK12*18*12 | 35942/12K | 10.3 | 12 | 18 | 12 | 5500 | 6300 | 17000 | |
| HK12*18*14 | 67942/12 | 10.6 | 12 | 18 | 14 | 6500 | 6300 | 15000 | |
| HK12*19*12 | 10 | 12 | 19 | 12 | 6800 | 7400 | 15000 | ||
| 13 | HK1311 | 8.5 | 13 | 19 | 11 | 6300 | 6300 | 14000 | |
| HK1312 | 8.9 | 13 | 19 | 12 | 6200 | 7100 | 17000 | ||
| BK1312 | 11.2 | 13 | 19 | 12 | 6200 | 7100 | 17000 | ||
| 13.5 | HK13.5*19*12 | 13.5 | 19 | 12 | 16000 | ||||
| HK13.5*20*12 | 7941/13.5 | 10.8 | 13.5 | 20 | 12 | 6250 | 7590 | 16000 | |
| 14 | HK1410 | 27941/14 | 8.3 | 14 | 20 | 10 | 6700 | 7000 | 16000 |
| BK1410 | 35941/14 | 12.1 | 14 | 20 | 10 | 6700 | 7000 | 16000 | |
| HK1412 | 37941/14 | 10.5 | 14 | 20 | 12 | 6800 | 7500 | 16000 | |
| HK1416 | 57941/14 | 13.9 | 14 | 20 | 16 | 7300 | 9000 | 14000 | |
| HK1418 | 14 | 20 | 14000 | ||||||
| 15 | HK15*20*12 | 7941/15 | 8.4 | 15 | 20 | 12 | 5800 | 6000 | 14000 |
| HK15*20*16 | 7942/15 | 11.4 | 15 | 20 | 16 | 6000 | 6200 | 14000 | |
| HK15*20*20 | 7943/15 | 13.8 | 15 | 20 | 20 | 6100 | 6400 | 14000 | |
| HK1512 | 37941/15 | 11.1 | 15 | 21 | 12 | 7000 | 8400 | 14000 | |
| BK1512 | 35941/15 | 12.7 | 15 | 21 | 12 | 7000 | 8400 | 14000 | |
| HK1514 | 47941/15 | 12.7 | 15 | 21 | 14 | 8500 | 10400 | 13000 | |
| HK1515 | 14.2 | 15 | 21 | 15 | 9100 | 11400 | 13000 | ||
| BK1515 | 15 | 21 | 15 | 9800 | 11400 | 14000 | |||
| TA1515 | 15 | 22 | 15 | 11400 | |||||
| TA1515Z | 15 | 22 | 15 | 11400 | |||||
| HK1516 | 57941/15 | 15 | 15 | 21 | 16 | 9800 | 11400 | 14000 | |
| BK1516 | 55941/15 | 16.5 | 15 | 21 | 16 | 9800 | 11400 | 14000 | |
| HK1522 | SZ-439 | 20.4 | 15 | 21 | 22 | 10400 | 16500 | 14000 | |
| BK1522 | 22 | 15 | 21 | 22 | 10400 | 16500 | 14000 | ||
| HK15*22*12 | 7948/15 | 12.5 | 15 | 22 | 21 | 14300 | 18400 | 13000 | |
| HK15*22*12.5 | 7948/15K | 13.5 | 15 | 22 | 12.5 | 14300 | 18400 | 13000 | |
| 16 | HK16*21*0.6 | 5.5 | 16 | 21 | 6 | 4200 | 5300 | 12000 | |
