CSK P CSK PP Backstop Clutch One Way Keyway Bearing
CSK...P CSK...PP Backstop Freewheels One Way Keyway Bearing
AVAILABLE TYPE
CSK / CSK-2RS / CSK...P / CSK...PP / CSK...P-2RS / CSK...PP-2RS
Bore Range: 8-40mm
The CSK Series is a sprag type clutch integrated into a 62 Series ball bearing (except sizes 8 and 40).
CSK..P

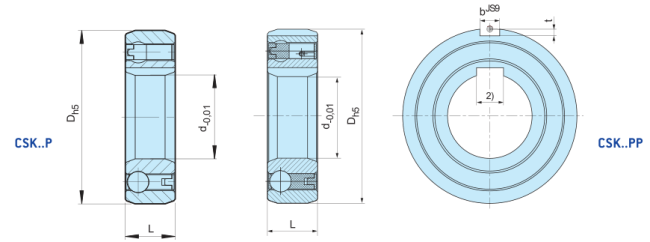

CSK . .P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race .
These clutches can be mounted on a shaft with recommended k6 tolerance and the outer race must be pressed into a rigid housing with a recommended N6 tolerance . The resulting housing and shaft diameters must be checked to ensure that the bearing has adequate radial clearances .
CSK..PP
CSK . .PP features a keyway on both the inner and outer race . The recommended mounting tolerances are k6 on the shaft and K6 in the rigid housing . A h6 tolerance on the shaft or H6 in the housing are also acceptable for a light press fit assembly . Always check to ensure that the bearing has adequate radial clearances.
CSK..2RS
CSK . .2RS clutches are .197” (5mm) wider than a standard 62 Series bearing, as they are equipped with lip seals for washdown applications .
| Type | Size | Bearing series | Bearing loads | Weight |
Drag torque |
|||||||
| dynamic | static | |||||||||||
|
CSK..P CSK...PP |
d | TKN1) | nmax | D | L | b | t | C | C0 | TR | ||
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
| 15 | 6202 | 17 | 8400 | 35 | 11 | 2 | 0.6 | 7.4 | 3.42 | 0.06 | 0.9 | |
| 17 | 6203 | 30 | 7350 | 40 | 12 | 2 | 1 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 3 | 1.5 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 6 | 2 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 6 | 2 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 8 | 2.5 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | – | 325 | 3000 | 80 | 22 | 10 | 3 | 15.54 | 12.25 | 0.5 | 7 | |
| 45 | _ | 218 | 1600 | 85 | 19 | 12 | 2.5 | 18.36 | 15.35 | 0.44 | 9.3 | |
| 50 | _ | 230 | 1500 | 90 | 20 | 12 | 2.5 | 19.53 | 17.68 | 0.49 | ||
| Type | Size | Bearing series | Dimension | Bearing loads |
Weight [kg] |
Drag torque | ||||
| dynamic | static | |||||||||
| CSK(KK) |
d [mm] |
TKN1) [Nm] |
N max [min-1] |
D [mm] |
L [mm] |
C [kN] |
C0 [kN] |
TR [Ncm] |
||
| 8* | – | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.5 | |
| 10 | 6200 | 6.8 | 13000 | 30 | 9 | 4.5 | 1.56 | 0.032 | 0.36 | |
| 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | |
| 15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |
| 17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |
| CSK…2RS | 8* | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.8 | |
| 10 | 6.8 | 13000 | 30 | 9 | 4.5 | 1.56 | 0.032 | 1.8 | ||
| 12 | - | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | |
| 15 | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | ||
| 17 | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | ||
| 20 | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | ||
| 25 | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | ||
| 30 | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | ||
| 35 | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | ||
| 40 | - | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 | |
