ASK Series One Way Roller Bearing ASK40 ASK50 ASK60 Freewheel Hub Bearings
ASK Series ASK40 ASK50 ASK60 Freewheel Bearing One Way Clutch
Type ASK is a roller type freewheel bearing supported by two rows of roller bearings. It is a self-contained dust protected unit, delivered grease lubricated. Nominal outside dimensions are the same as a 60.series bearing. Torque transmission must be ensured by a press fit on both the inner and outer race. Because of this press fit, the standard radial clearance is C4.
The interference tolerances are on the freewheel dimensions, allowing a direct mounting in a standard series 60.
Bearing location: Shaft tolerance should be h6 or j6 The outer race should be pressed into a rigid housing to K6 tolerance. Radial bearing load capacities are given in the table. Type ASK freewheels can not accept axial loading. In cases of such loads, thrust bearings must be provided.

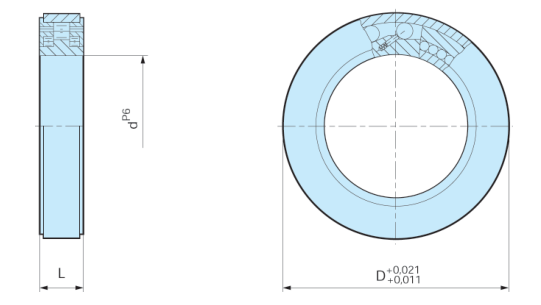

| Type | Size |
Bearing Series |
Outside Dia. | Height | Bearing loads | Weight |
Drag torque |
|||
| Dyn. | Sta. | |||||||||
|
ASK |
Dp6 (mm) |
TKN1) (Nm) |
nmax (min-1) |
D (mm) |
L (mm) |
C (kN) |
C0 (kN) |
(kg) |
TR (Ncm) |
|
| 40 | 6008 | 72 | 3500 | 68 | 15 | 16 | 20.6 | 0.25 | 15 | |
| 50 | 6010 | 125 | 2200 | 80 | 16 | 19.6 | 23.5 | 0.34 | 20 | |
| 60 | 6012 | 250 | 1800 | 95 | 18 | 25.3 | 35.1 | 0.5 | 25 | |
