GE8C GE10C GE15C Spherical Bush Bearing Steel PTFE Self Lubricating Bearing
Price:
USD3-USD5PER PIECE
MOQ:
1 PIECE
Delivery Time:
2 Days
Brand:
BLUEN
Product Description
GEEW...ES-2RS Series Steel /Self-lubricating radial spherical plain bearingsGEEM30ES-2RS
Features of Self-lubricating radial spherical plain bearings
Radial spherical plain bearing, maintenance-free, low friction, metric sizes
These radial spherical plain bearings have a steel/PTFE sintered bronze contact surface combination and are maintenance-free. They have to be externally protected from contaminants. They are also available with a wider inner ring and larger outside diameter (suffix GEH) to enable higher load ratings and a larger tilt angle.
- Accommodate misalignment
- Maintenance-free
- Suitable for very heavy, constant direction loads
- Low coefficient of friction

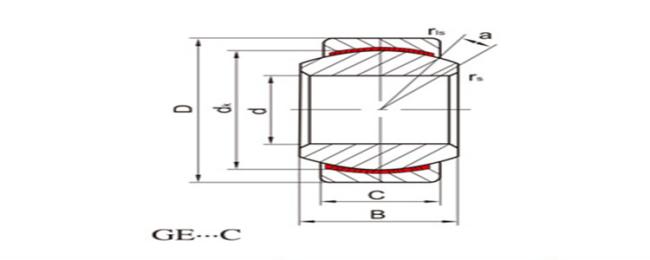

| No. |
Bearing number |
Dimensions(mm) | Load Ratings |
Weight (Kg) |
||||||||
| d | D | B | C | dk |
r1 min |
r2 min |
α | Dynamic | Static | |||
| (KN) | (KN) | |||||||||||
| 1 | GE4C | 4 | 12 | 5 | 3 | 8 | 0.3 | 0.3 | 16 | 2.1 | 5.4 | 0.003 |
| 2 | GE5C | 5 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.6 | 9.1 | 0.005 |
| 3 | GE6C | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.6 | 9.1 | 0.004 |
| 4 | GE8C | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 15 | 5.8 | 14 | 0.008 |
| 5 | GE10C | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 12 | 8.6 | 21 | 0.011 |
| 6 | GE12C | 12 | 22 | 10 | 7 | 18 | 0.3 | 0.3 | 10 | 11 | 28 | 0.015 |
| 7 | GE15C | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 18 | 45 | 0.027 |
| 8 | GE17C | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 22 | 56 | 0.041 |
| 9 | GE20C | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 9 | 31 | 78 | 0.066 |
| 10 | GE25C | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 51 | 127 | 0.119 |
| 11 | GE30C | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 65 | 166 | 0.163 |
