LME Gcr15 Metric Linear Bearings LM 10 UU Linear Bearing High Precision

LM LME Series Linear Motion Bearings

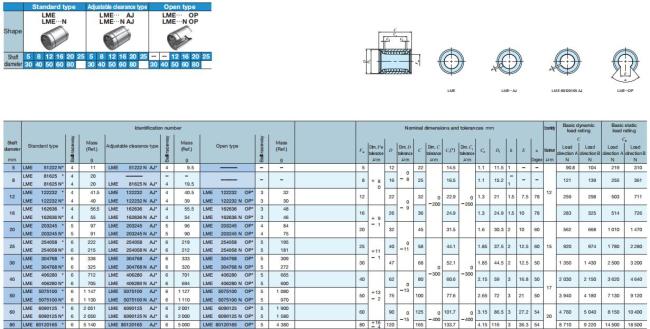

Dimensions and Capacities of Linear Motion Bearings

Linear motion bearings are divided into two series, namely LM linear bearing and LME linear bearing series. Its code LM series is used in Asia, Southeast Asian countries, Japan, South Korea, China and so on. LME linear bearing series are mostly used in Europe, the United States, Germany, Italy and other regions. The structural characteristics of the two series are roughly the same except for different sizes and different aperture tolerances...
Linear motion bearings are low-cost production linear motion systems for use with cylindrical shafts with infinite travel. Since the bearing ball is in point contact with the shaft, the operating load is small. The steel ball rotates with minimal frictional resistance, resulting in a smooth motion with high precision

The inner and outer diameters of the linear bearing adjustment type and open type bearing are measured before the cut, and there will be some elastic deformation after the cut, and the matching clearance should be measured in the bearing seat (similar to the steel retainer bearing and KH bearing). The adjustment direction of the bearing seat with adjustable clearance should be perpendicular to the direction of the bearing cut to ensure uniform clearance. The structural characteristics of the linear bearing cannot be rotated, and good guidance is required, so the linear bearing is generally two shafts + four sets Bearings or two shafts + two sets of elongated bearings are used as a combination. The installation of the two shafts should be straight. After the entire combination is assembled, the transmission mechanism must be flexible and unobstructed by hand pushing and pulling, and the transmission power must be sufficient to overcome the bearing friction. Resistance, linear bearing friction resistance is approximately one thousandth of the working load
