UCP312 UCP313 Industrial Pillow Block Bearings Split Bearing UCP314
UCP312 UCP313 UCP314 Plummer Pillow Block Bearing
- 1) Check and Clean the Shaft. ...
- 2) Position the Bearings on the Shaft. ...
- 3) Lightly Bolt the Housing to the Mounting Structure. ...
- 4) Establish the Final Mounting Position. ...
- 5) Securely Bolt the Housing to the Mounting Structure. ...
- 6) Ensure the Shaft can Move Axially. ...
- 7) Tighten Both Collar Set Screws. ...
- 8) Expansion Unit*

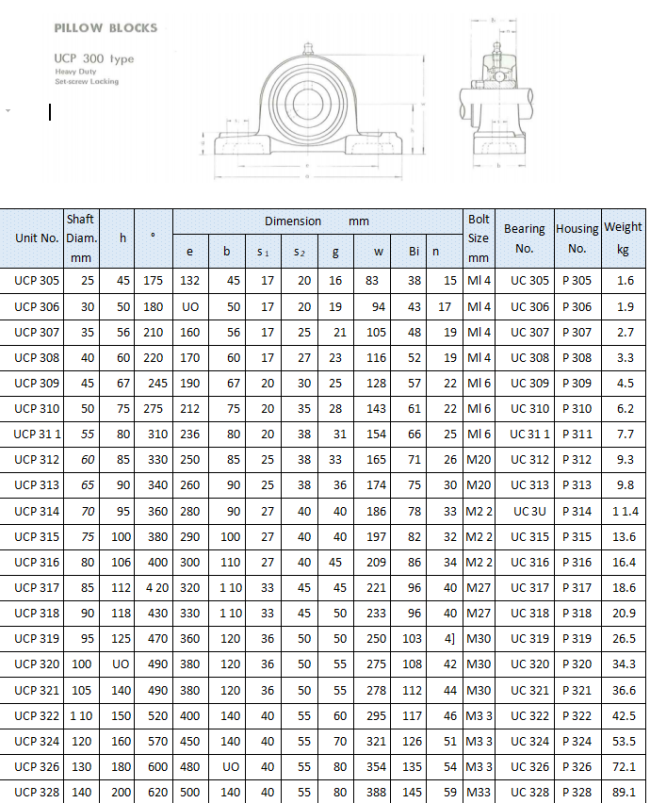

Product Parameter of Plummer Pillow Block Bearing
UCP300 Series Plummer Blocks Bearing feature durable cast-iron housing and robust sealing options to keep lubrication in and contamination out. Add in high-performance spherical roller bearings for a metric split block housed unit that delivers performance in the toughest environments.
Plummer Blocks Bearing are available in two-and four-bolt mounting configurations. The UCP line features 200, 300, 500 and 600 series housings; 3000 and 3100 series are available for larger sizes.
Shaft size range: 20 mm to 380 mm, cast steel and ductile iron housings available for severe duty applications.
Industries and Applications
UCP Plummer Blocks handle demanding heavy industrial operations:
- Power Generation (Coal)
- Mining/Aggregate/Cement
- Metal MillsPulp & Paper/Sawmills/Forestry/Water Treatment
- Food Processing
- Warehousing
- Movable Bridges/Structures
- Industrial Fans/Blowers

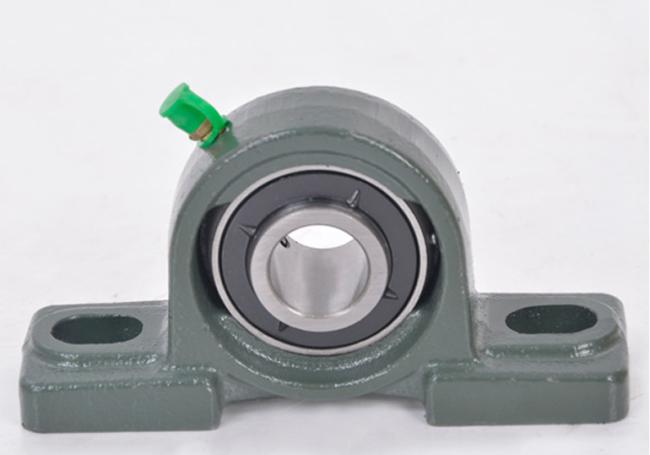

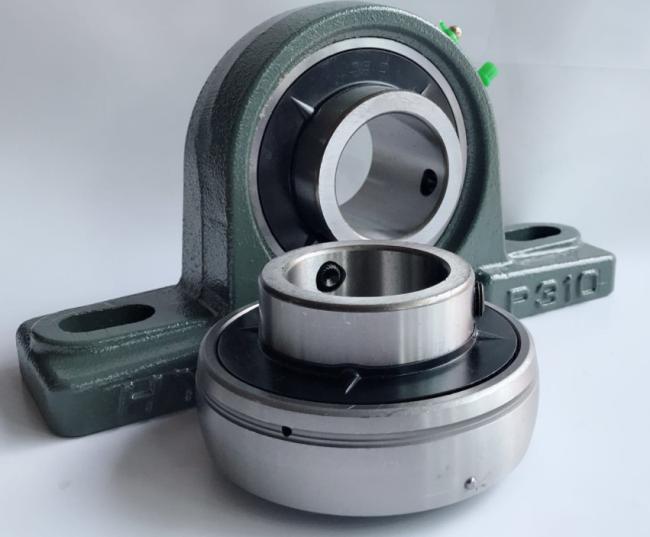

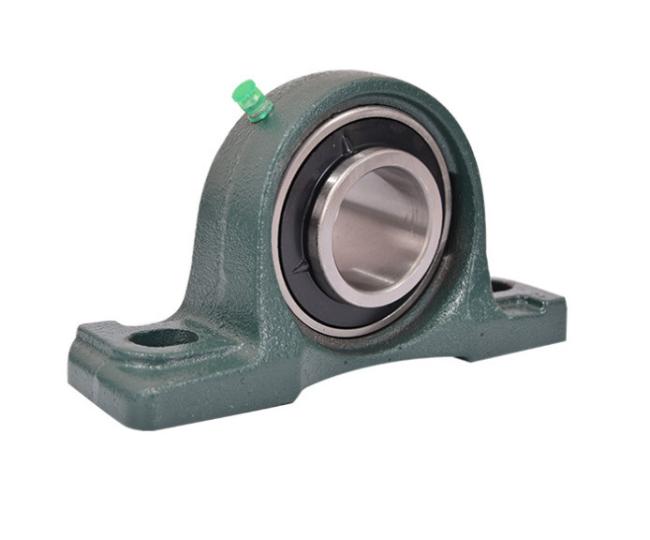

Product display of Plummer Pillow Block Bearing:
