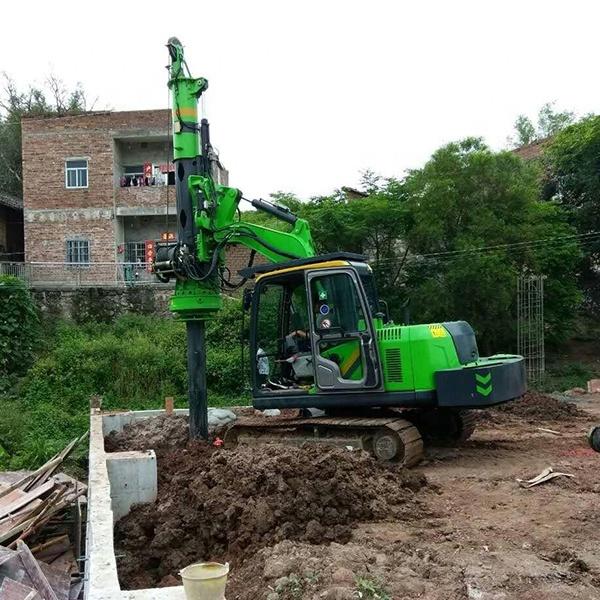

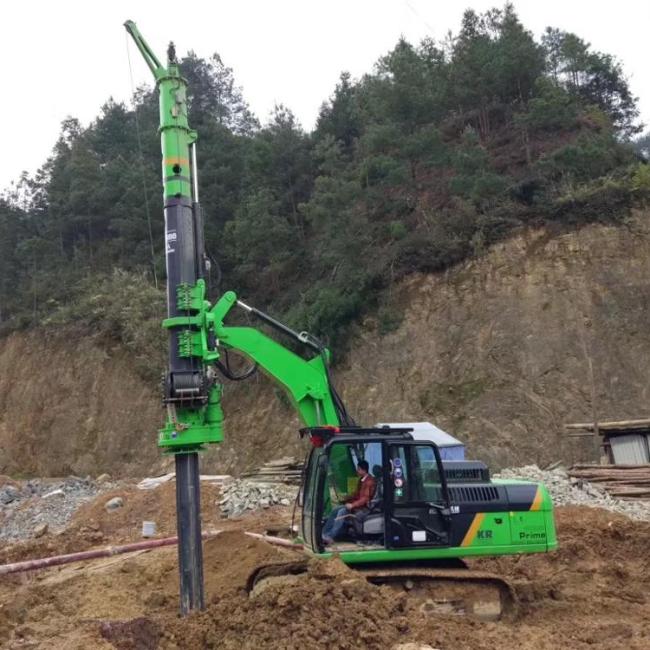

40kNm 28m Rotary Pile Machine Hydraulic Drilling Rig Machine 30m/Min
Low Price Reliable Performance Hydraulic Used Rotary Pile Drilling Rig Machine
Product description
1. Erialized products have different models, different capabilities, and multiple choices to meet the needs of different customers.
2. Power head can be mechanically / hydraulically shifted. Suitable for various drilling methods such as down-the-hole hammer, heel pipe, full ca sing and alloy rotation
3. The drilling rig is equipped with a hydraulic clamping shackle device and an automatic shackle, which reduces auxiliary time and labor intensity.
4. The crawler chassis equipped with a turning device on the car makes the whole machine move and find holes more conveniently and quickly.
Technical Specification
| Rotary Drilling Rig Model | KR40A |
| Max. torque | 40 kN.m |
| Max. drilling diameter | 1200 mm |
| Max. drilling depth | 10 m |
| Max. cylinder thrust | 70 kN |
| Max. cylinder trip | 600 mm |
| Main winch pull force | 45 kN |
| Main winch speed | 30 m/min |
| Mast inclination(Lateral) | ±6° |
| Mast inclination(Forward) | -30°~+60° |
| Working speed | 7-30rpm |
| Min. radius of gyration | 2750mm |
| Max. pilot pressure | 28.5Mpa |
| Operating height | 7420mm |
| Operating width | 2200mm |
| Transport height | 2625mm |
| Transport width | 2200mm |
| Transport length | 8930mm |
| Transport weight | 12 tons |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
3: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
