Electric Vehicle Car Charger EV Type 2 7KW Current 32A Portable CEE Plug 220V
Electric Vehicle Car Charger EV Type 2 7KW Current 16/24/32A Portable Charging Box CEE Plug 220V IEC 62196-2 6M
Features:
Product Name:Electric Vehicle Car Charger EV Type 2
Cable Length: 6 Meter
Rated Current: 16/24/32A
Phase Number: 1 phases
Related Current: 100-250V AC
Case Material: Copper, Thermoplastic material
Protection Grade: IP65
Pin Material: Copper Alloy, Silver+ Thermoplastic On the Top
Retardant Frade: UL94V-0
Certificates: CE, TUV approved
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Vibration resistance: Meet JDQ 53.3 requirements
Working temperature: -30°C ~+ 50°C
Insulation material: thermoplastic
Flame retardant rating: UL94V-0
Contact material: copper alloy, silver plated

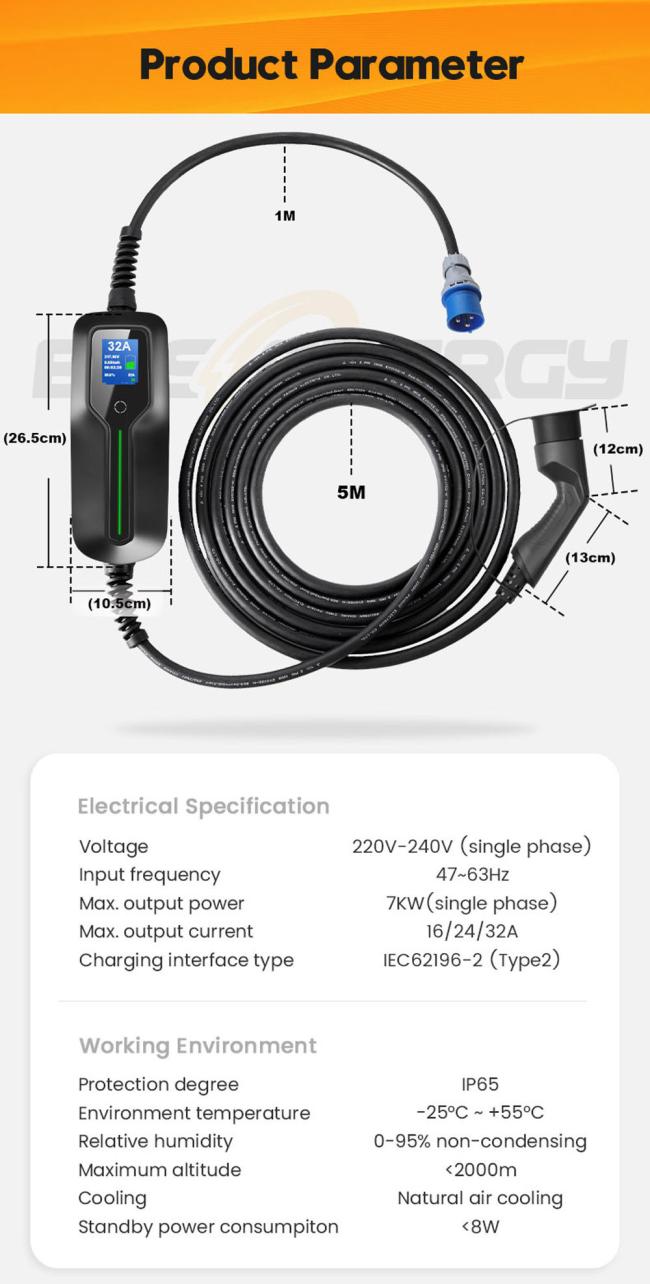

Product Parameter:
|
Input & Output
|
|||
|
Input voltage/Output voltage
|
100~250V AC
|
Max. output current
|
32A
|
|
Input frequency
|
47~63Hz
|
Charging interface type
|
IEC 62196-2
|
|
Max. output power
|
7.2KW
|
|
|
|
Protection
|
|||
|
Over voltage protection
|
yes
|
Earth leakage protection
|
yes
|
|
Under voltage protection
|
yes
|
Over-temp protection
|
yes
|
|
Over load protection
|
yes
|
Lightning protection
|
yes
|
|
Short circuit protection
|
yes
|
|
|
|
Function and Accessory
|
|||
|
Ethernet/WIFI/4G/Bluetooth
|
No
|
LED Indicator light
|
yes
|
|
LCD
|
1.8-inch color display
|
Intelligent power adjustment
|
yes
|
|
RCD
|
Type A
|
RFID
|
No
|
|
Working environment
|
|||
|
Protection degree
|
IP65
|
Maximum altitude
|
<2000m
|
|
Environment temperature
|
-25℃ ~ +55℃
|
Cooling
|
Natural air cooling
|
|
Relative humidity
|
0-95% non-condensing
|
Standby power consumpiton
|
<8W
|
|
Package
|
|||
|
Dimension (W/H/D)
|
249/104/48mm
|
Weight
|
5KG
|
|
Certificate
|
CE, FCC, IK10, IP65
|
||
