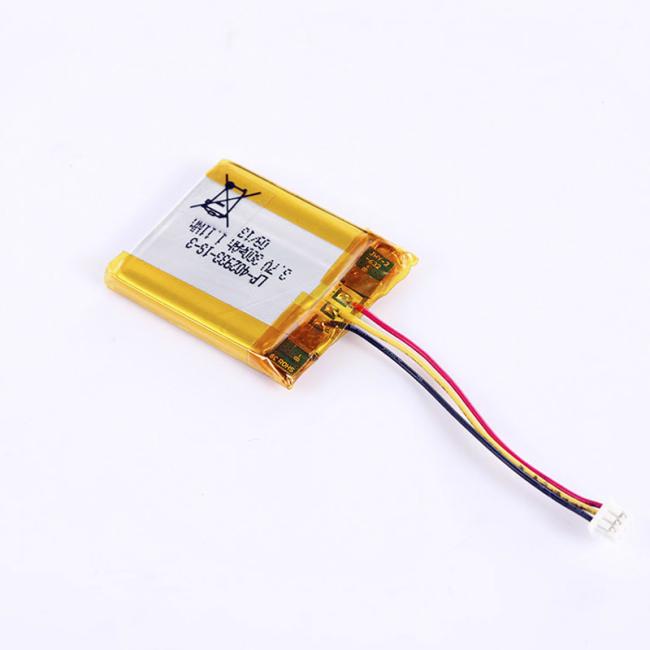

3.7V 300mAh Rechargeable Lipo Battery 402933 With Molex Connector
3.7V 300mAh Rechargeable Lipo Battery 402933 With Molex Connector
3.7V Rechargeable Lithium Polymer Ion Battery 300mAh 402933 Lipo Battery With Molex Connector UN38.3
3.7V Rechargeable Lithium Polymer Ion Battery Quick details:
1. Diameter*Height : 29mm x 33mm x 4mm (Lithium Ion polymer 402933 size)
2. Nominal Voltage : 3.7V
3. Nominal Capacity : 300mAh
4. Cycle life : 100 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion Polymer rechargeable battery cell 402933
7. CE , UL , UN38.3 , MSDS compliant
Lipo Rechargeable Battery 3.7 V Description:
VOLTAGE: 3.7V; Typical capacity: 300mAh, Min capacity: 300mAh; Weight: approximate 6g; Size: 29 x 33 x 4.0mm/1"x1.41"x0.17" (WxLxH)
RELIABLE PERFORMANCE—No leaking, excellent cost performance and long cycle life. PCM protection function: over charge, over discharge, over current, short circuit protection. STORAGE—Keep the cells in 40%-60% charged state during long period storage. We recommend to charge the battery every 3 months after receipt of the battery and maintain the voltage 3.7-4.0V. And store the battery in cool and dry place.
Advantage:
1. Long life, large capacity and good shock resistance
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10. Most safe no explosion no fire
The 402933 3.7V 300mAh is one of our popular rechargeable LiPo batteries, Our MOQ is only 1 pieces, friendly to the small company.
3.7V Rechargeable Lithium Polymer Ion Battery Specifications:
| No | items | Specification |
| 1 | Mode | 402933 |
| 2 | Nominal capacity | 300mAh |
| 3 | Nominal voltage | 3.7V |
| 4 | Delivery voltage | 3.7-4.2V |
| 5 | charge voltage | 3.7V |
| 6 | Standard charging method | 0.5C constant current, 3.7V constant voltage charge to 3.7V, continue charging till current decline to ≤0.01C |
| 7 | Charge current | 1C 0.3A Standard charge, charge time:6.5h(Ref) 1C 0.3A Rapid Charge, charge time:3h(Ref) |
| 8 | Standard discharging method | 0.5C constant current discharge to 3.7V |
| 9 | Cell Internal Impedance | ≤150mΩ |
| 10 | Maximum cont charge current | 0.5C For continuous charging mod |
| 11 | Max cont discharge current | 0.5C Peak instant discharge current 1C |
3.7V Rechargeable Lithium Polymer Ion Battery Products Details :
3.7V Rechargeable Lithium Polymer Ion Battery Applications:
Uitable for bluetooth speaker, dash cam, keyboard and mouse, Wi-Fi enabled smart home systems, PDA and digital cameras, GPS, monitoring units, notebook computers, e-books, telematics, tracking devices, sleep management equipment, blood oxygen tracking equipment, pulse monitors.
