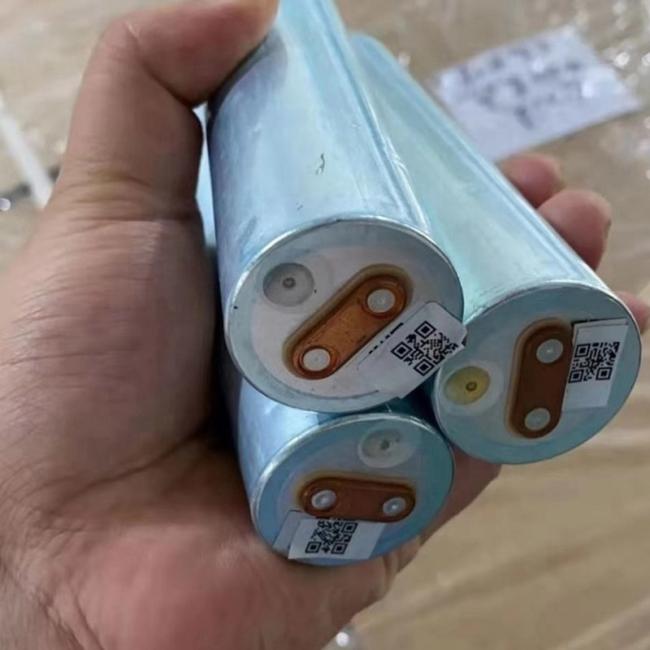

3.2v 15Ah LiFePO4 Ebike Battery IFR32135 Cylindrical Lithium Ion Cell

3.2v 15Ah LiFePO4 Ebike Battery Rechargeable LFP Battery Cells IFR32135 For EV , Scooter

Cylindrical Lithium Ion Cell details:

1. Diameter*Height : 32*135mm ( LiFePO4 32135 size )

2. Nominal Voltage : 3.2V

3. Nominal Capacity : 15Ah 48Wh

4. Cycle life : 3000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion LiFePO4 battery cell

7. CE , UL , UN38.3 , MSDS compliant

LiFePO4 Ebike Battery Description:

EA Energy has 14 years of experience in lithium battery production!

90% of the energy of the iron phosphate battery is concentrated in a small area of 3-3.2v, and the discharge characteristics are very stable.
lithium iron phosphate is strictly Safety tests do

It is suitable for all kinds of small electric tricycle battery packs, sprayer batteries, solar street lights, strong light flashlights etc.

higher energy density and lighter weight. Excellent life cycle, low internal resistance, Universal multi-use model, energy saving and Environmental friendly.

Widely Applications: Power tools, Home Appliances, Consumer Electronics, Boats, Golf Carts, Sub Marine, Electric Bicycles/Scooters,
Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems,
Uninterruptible Power Supplies, Solar System/Power sprayer/electric car/Road cleaning car/Golf car/EV/RV/Caravan
Off-Grid Solar Storage System

Nominal voltage: 3.2v

Battery resistance: ≤2.5mΩ

The maximum charging current:5C

Maximum charging voltage: 3.65±0.05V

The maximum discharge current (continuous): 0.5C

The maximum discharge current (instantaneous pulse): 5C

Discharge voltage: 2.0V

Size Φ33±1mm*H140±1mm

Weight: 300g

Cycle life: >3000 Operating

temperature: -10~45℃

Storage temperature Within a month: -20~40℃

Within 6 months -20~35℃

Battery Safety Warnings: Mishandling of the battery may cause heat, fire, damages, and deterioration in performance.

Easy to install,High capacity, long life and lasting performance.

We can also customize any size and function you need.Such as 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah etc..

Lifepo4 Ebike Battery Cells Specifications :

Lifepo4 Ebike Battery Cells Details:

Lifepo4 Ebike Battery Cells Applications:

Widely Applications: Power tools, Home Appliances, Consumer Electronics, Boats, Golf Carts, Sub Marine, Electric Bicycles/Scooters,
Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems,
Uninterruptible Power Supplies, Solar System/Power sprayer/electric car/Road cleaning car/Golf car/EV/RV/Caravan
Off-Grid Solar Storage System
