LiFePO4 48V Golf Cart Battery Pack 160Ah Prismatic With BMS
48V Golf Carts Battery 48V 160Ah LiFePO4 Battery Packs With BMS For Golf Carts
Description of 48V 160Ah Golf Cart Battery:
This 48V 160Ah LiFePO4 Battery Packs battery is Specially developed for golf carts . it is can Applicated for many kinds of Golf Carts .
The Diameter is 800*361*232mm Nominal Voltage is 51.2V 8192wh capacity , it is a long cycle life than lead acid battery , over 5000 cycles .All of our LiFePO4 batteries with CE , UL ,UN38.3 , MSDS certificate
Specification of 48V 56Ah 106Ah 160Ah Golf Cart Battery:
|
Model
|
EA4856
|
EA48105
|
EA48160
|
|
Cell
|
LiFePO4 Battery Cells
|
LiFePO4 Battery Cells
|
LiFePO4 Battery Cells
|
|
Rated capacity(at 0.2C)
|
56Ah
|
105Ah
|
160Ah
|
|
Rated voltage
|
51.2V
|
51.2V
|
51.2V
|
|
Cycle Life
|
Over 5000cycles (@25°C, 0.2C, RT, 80% DOD)
|
Over 5000cycles (@25°C, 0.2C, RT, 80% DOD)
|
Over 5000cycles (@25°C, 0.2C, RT, 80% DOD)
|
|
Charging method
|
0.2C to 57.6V, then charge current to 0.02C (CC/CV)
|
0.2C to 57.6V, then charge current to 0.02C (CC/CV)
|
0.2C to 57.6V, then charge current to 0.02C (CC/CV)
|
|
Recommended charge voltage
|
58.4V
|
58.4V
|
58.4V
|
|
Discharge cut-off voltage
|
40V
|
40V
|
40V
|
|
Standard charge current
|
0.2C
|
0.2C
|
0.2C
|
|
Max. charge current
|
0.5C
|
0.5C
|
0.5C
|
|
Continuous discharge current
|
50A or customized
|
100A or customized
|
100A or customized
|
|
Peak discharge current
|
200A (10s) or customized
|
200A (10s) or customized
|
200A (10s) or customized
|
|
Self-discharge
|
25°C, monthly≤3%
|
25°C, monthly≤3%
|
25°C, monthly≤3%
|
|
BMS
|
Built-in smart BMS
|
Built-in smart BMS
|
Built-in smart BMS
|
|
Communication port
|
CANBus or customized
|
CANBus or customized
|
CANBus or customized
|
|
IP Rating
|
IP67 or customized
|
IP67 or customized
|
IP67 or customized
|
|
Temperature (Charge)
|
0°C ~ 55°C
|
0°C ~ 55°C
|
0°C ~ 55°C
|
|
Temperature (Discharge)
|
-20°C ~ +55°C
|
-20°C ~ +55°C
|
-20°C ~ +55°C
|
|
Temperature (Storage)
|
0°C ~ 35°C
|
0°C ~ 35°C
|
0°C ~ 35°C
|
|
Battery dimension
|
460*335*246mm or customized
|
460*335*246mm or customized
|
800*×361*232mm or customized
|
|
Total weight(Approx.)
|
33Kg or customized
|
43.2Kg or customized
|
72Kg or customized
|
|
Warranty
|
5years
|
5years
|
5years
|
|
Design life
|
10years
|
10years
|
10years
|
|
SOC display
|
Optional
|
Optional
|
Optional
|
Feature Of 48V 160Ah Golf Cart Battery:
1. Environmental Friendly and Longer Service Life : Our LiFePO4 battery provides 5000+ cycles, Over 10 Years Lifetime. The service life of LiFePO4 batteries is 8 to 10 times than the standard lead-acid batteries. 160Ah LiFePO4 battery can be recycled without any producing harmful elements to the environment.
2. Built-In BMS Protection: This 48V 160Ah Lithium Battery has Built-In BMS (Battery Management System) to maintain the voltage of every cell and prevents over-charged, over-discharged, over-current, short circuit, and over temp. All our batteries pass UL Testing and have FCC, CE, PSE, IP65 certificates, and a 5-10 years warranty free you from battery security concerns.
3. Our golf cart 48V 40Ah batteries come with everything you need to make replacing your batteries a breeze! High output and longer run times. Give your golf cart a massive boost in speed and torque. 48V LiFePO4 Batteries are a direct replacement for many RV, motorhome, and trolling motor batteries.
4. 160Ah 48V Battery can be connected in parallels for larger capacity. Connection in parallels: Up to 4 identical batteries for up to 400Ah. this new battery system Supply for Wide Application at home energy storage system and RV & camper, Houseboat, Travel Trailer, and more

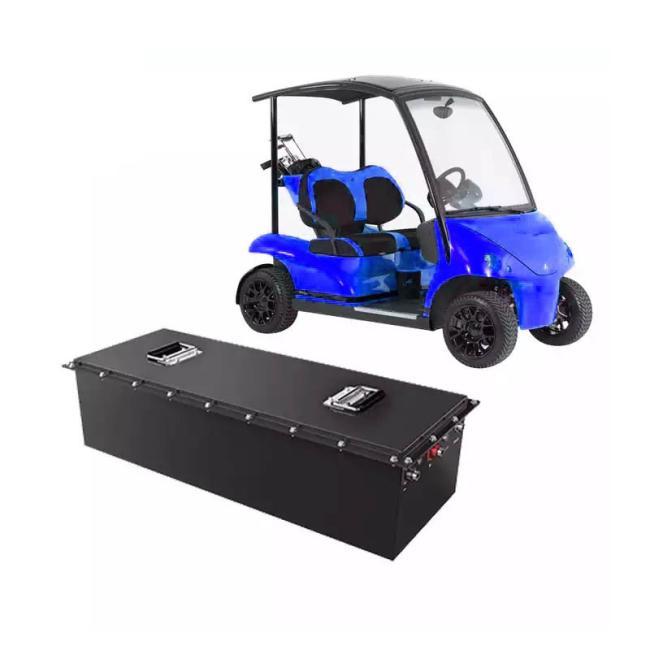

48V 160Ah Golf Cart Battery Details :

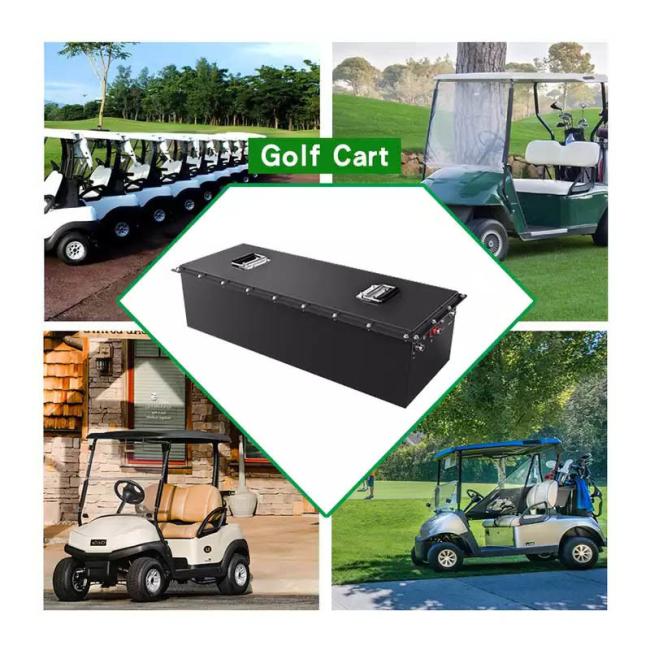

48V 160Ah Golf Cart Battery Applications:
48V 160Ah EA ENERGY Deep Cycle LiFePO4 battery has 5000-8000 cycles and 10 years lifetime. Stable and excellent performance makes it very suitable for UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, electric vehicles, DIY loud speaker, air pump, fish finder, golf car, trolling motor, motorhome/RV & camper, Houseboat, Travel Trailer, Dump Trailer and off-grid applications.
