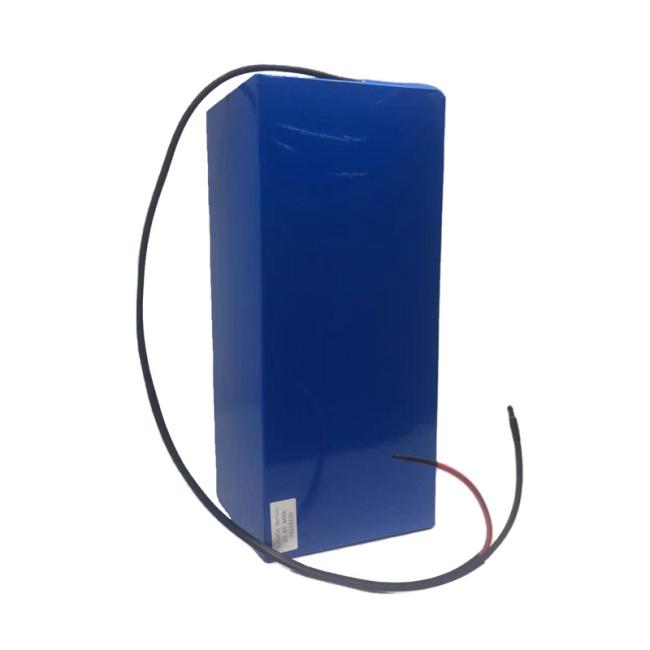

24V 60Ah LiFePO4 Lithium Ion Battery Pack 25.6V Deep Cycle For Scooter
24V 60Ah LiFePO4 Lithium Ion Battery Pack 25.6V Deep Cycle Battery For Scooter
Description of 24V 60Ah LiFePO4 Battery:
1. Diameter*Height : 135*140*340mm
2. Nominal Voltage : 25.6V
3. Nominal Capacity : 60Ah
4. Cycle life : 5000 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion rechargeable LiFePO4 battery cell
7. CE , UL ,UN38.3 , MSDS compliant
Specification of 24V 60Ah LiFePO4 Battery:
| NO | Items | Specification | Remarks | |
| 1 | Nominal Capacity | 60Ah | 0.2C Discharge | |
| 0.2C Discharge | ||||
| 2 | Nominal Voltage/shipping voltage | 24V | Voltage | |
| 3 | Discharge Cut-off Voltage | 24V | 0.2C Discharge | |
| 0.2C Discharge | ||||
| 4 | Charge Limited Voltage | 26V | 0℃~45℃ | |
| 5 | Standard Charge Current | 12A | 0℃~45℃ | |
| 6 | Standard Discharge Current | 60A | -20℃~ +60℃ | |
| 7 | Rapid Charge Current | 0.5C 4A | 10℃~45℃ | |
| 8 | Rapid Discharge Current | 0.5C 4A | -20℃~ +60℃ | |
| 9 | Max. Charge Current | 1C 60A | ||
| Max Pulse Current | 3C | |||
| 10 | Internal Impedance | ≤100mΩ | AC 1kHz condition | |
| At AC 1kHz | ||||
| 11 | Weight | About 3kg | Weight 3kg | |
| 12 | Storage Temperature Range | ≤1 month | -20~ 45℃ | Factory Voltage 24~26V |
| ≤3 months | 0℃~ +30℃ | Ex-factory Voltage 24~26V | ||
| ≤12 months | 20±5℃ | |
||
Feature Of 24V 60Ah LiFePO4 Battery:
1. 24V 60Ah LiFePO4 battery Life expectancy is 8-10 times that of lead-acid batteries.The weight is more lighter.
LiFePO4 battery provides 5000+ cycles compared to 300~500 cycles in lead acid battery. The service life of LiFePO4 batteries is 8 to 10 times than the standard lead-acid batteries. The weight of the lithium iron phosphate battery is 30% lighter than the lead-acid battery of the same capacity.
2. No memory effect and rechargeable.the battery life is more longer
Our LiFePO4 lithium battery provides 5000+ cycles, 10 Years Lifetime. The service life of LiFePO4 batteries is 8 to 10 times than the standard lead-acid batteries. 100Ah lithium battery can be recycled without producing harmful elements to the environment.
3. Safer and more environmentally friendly, No heavy metals and hazardous substances.
4. Built-in IC chip will prevent battery pack over charge, over discharge, over-current,
over-heat, short circuit .
LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, overcurrent, and short circuit with excellent self-discharge rate. Operating Temp: Charge: 0°C~50°C; Discharge: -20°C~60°C. Our battery is IP65 waterproof, setting you free from worrying to install indoors or outdoors.
5. ≥80% Capacity After 2000 Cycles
Our LiFePO4 battery have ≥80% Capacity After 2000 Cycles .this excellent performance ensures that my battery does not need frequent maintenance.and wider application such as solar home, RV, campers, golf cart, motor homes, off-grid applications.
6. We can also customize any size and function you need.Such as 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah etc..
24V 60Ah LiFePO4 Battery Details :
24V 60Ah LiFePO4 Battery Applications:
24V 60Ah EA ENERGY Deep Cycle LiFePO4 battery has 5000-8000 cycles and 10 years lifetime. Stable and excellent performance makes it very suitable for DIY loud speaker, air pump, fish finder, golf car, trolling motor, motorhome/RV & camper, Houseboat, Travel Trailer, Dump Trailer and off-grid ,UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, electric vehicles, applications.
