2g Hidden Fleet Vehicle GPS Trackers for Electric Scooter Motorcycle Car
Miltiple 2g fleet gps tracker electric scooter motorcycle car hidden gps tracker

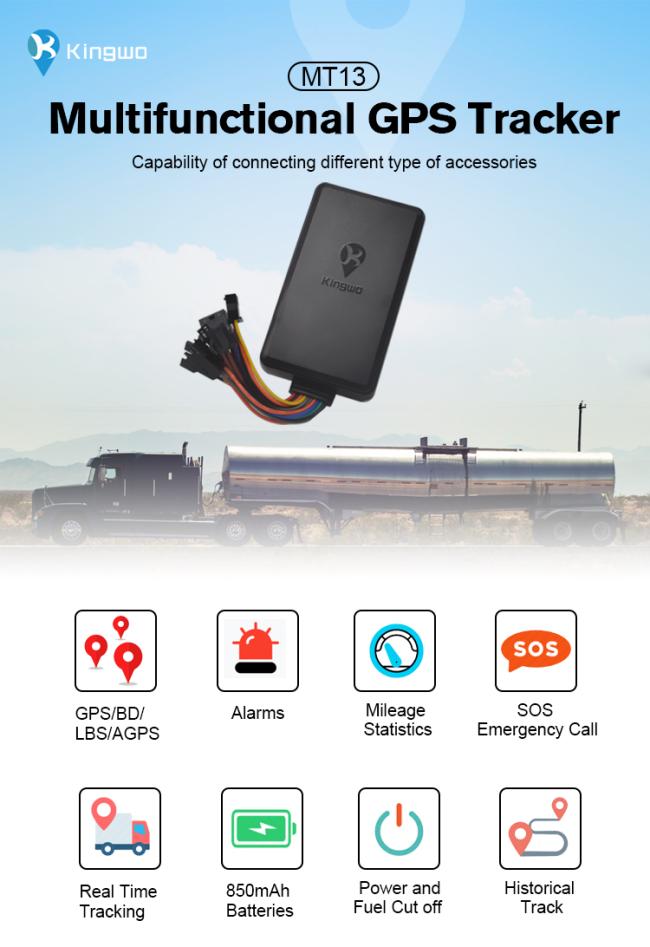

MT13 is a multifunctional device with high performance, in addition to the basic tracking functions, the device also allows to connects multiple accessories including camera, fuel sensors etc both for cars and commercial vehicle monitoring purpose.
Highlights
- Input range: DC 9-36V
- Supports GNSS and Beidou
- Supports Multiple accessories
- RS232 interfaces
- Supports OTA upgrading
- Supports to connect engine cut relay, remote to control the vehicle
- Real-time GPS tracking, History playback, Blind data storage, Cornering compensation
- Built-in 850mah backup battery, which is able to work 8 hours
- Up to 20000 pcs of data storage
- IP65 waterproof
Specification:
| Mechanical | Size | 98mm (L) x 56mm (W) x 18mm (H) | |
| Weight | 80±5g | ||
| Interface | RS232 interface | ||
| Data transmission | Packet data GPRS and SMS | ||
| Positioning method | GPS | ||
| Storage | 4MB FLASH, up to 20000 GPS data storage | ||
| Power | Working Voltage | 9-36VDC | |
| Working Current |
Max.: <200mA@13.8/27.6VDC Average: <100mA@12V DC Sleep mode: <10mA@12/24VDC |
||
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
||
| Cellular |
Module: QUECTEL MC25 GSM/GPRS 850/900/1800/1900 MHz Working voltage: 3.3 – 4.5 V (recommend 4.0V ) Transmitted power: 2 W,850/900 MHz 1 W,1800/1900 MHz |
||
| Chipset | STM32F070CB | ||
| Battery | Built in 850mAH battery,3.6V,Lithium polymer battery, 8 hours working | ||
| 3-axis G-sensor | For vehicle motion and static status detection | ||
| LED Indication | GPS/Cellular/ | ||
| Antenna | Cellular | Internal | |
| GPS | Internal | ||
| Accessories |
|
||
| Environment | Working Temperature | -20℃ ~ +70℃ | |
| Storage Temperature | -40℃ ~ +85℃ | ||
| Humidity | 5%～95%(no fog) | ||
