2G Real Time Motorcycle Gps Tracker
Car Vehicle Tracker 2g Vehicle GPS Tracker Real Time MT200 GSM motorcycle gps tracker
Specification:
| Physical | Dimension | 75*40*13mm |
| Weight | 45±3g | |
| Cellular | GSM module | Quectel MC25 |
| Frequency |
Working Frequency: 850/900/1800/1900MHz |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Bluetooth | Bluetooth 5.0 | |
| Power | Input voltage | 9-90V |
| Power consumption |
Average Current: <30mA (DC 12V) Maximum current: <10mA (DC 12V) |
|
| Interface | Digital input(2) | Ignition detect and Air condition status detect |
| Digital output(1) | Relay | |
| Anolog input 1 | Voltage range:0-36V | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim | |
| Indicator | 2 status LEDs, Green: GPS, Red: GSM | |
| Memory | 1000 packets | |
Alarm function
1 Low Voltage Alarm (Default ON)
When the battery voltage on the vehicle is too low (0-11V or 19-22V), device will report a low voltage alarm to the backend
2 Over speed alarm (Default OFF)
When the vehicle speed is higher than the preset alarm value, the device will notify the backend. Similarly, when the vehicle speed is lower than preset alarm value, a low speed alarm will be uploaded to the backend, this value is configurable.
3 Driving behavior alarm (Default OFF)
The device is built in with G-sensor, which can detect speeding, hard deceleration, hard acceleration and Cornering alarm
4 Turn over alarm(Default OFF)
If someone turn over the device, it will report an alarm.

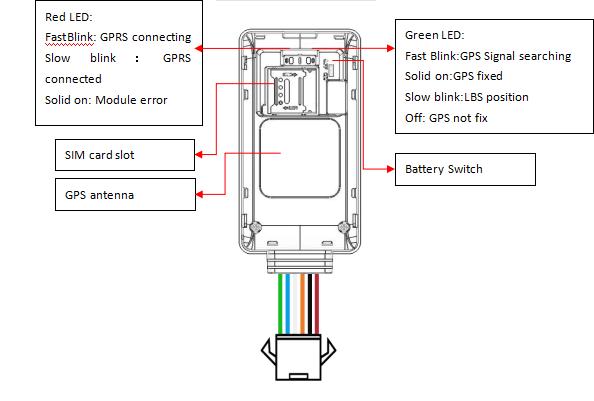

Wiring diagram
