IP65 High Gain GPS Antenna Battery Powered Asset Tracker Remote Control
LT06EE Asset GPS Tracker Strong Magnet Ultra low consumption AGPS

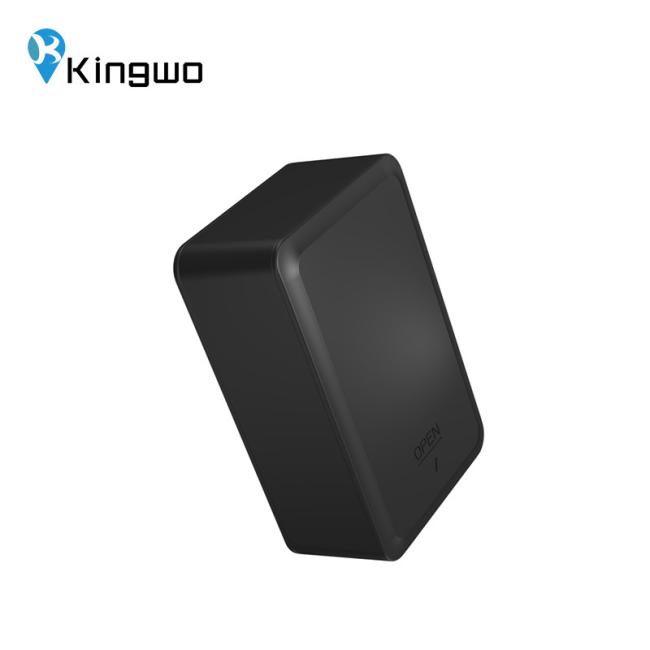

LT06 is a compact GPS tracker for vehicles, it is small in size and with internal GPS/GSM antenna. It is designed for cars, vehicles, fixed assets and valuables. It built-in non-rechargeable lithium-ion batteries, can be used more than 5 years.
In recent years, with the rapid development of the auto finance in domestic market, Kingwo has become a mainstream supplier of automotive financial risky control which based on Bediou/GPS technology, as “internet +expert of auto financial risky control products”, Kingwo has won good reputation and the market share has increased by 100% every year for three consecutive years. Among them, the self-developed 3-year long standby location terminal took up 1/3 of the national market share in 2022.
| Physical | Dimension | 81mm*51mm*31mm(L*W*H) |
| Weight | 161±5g | |
| Cellular | Module | Quectel EC25 |
| Frequency |
Working frequency: Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85 • Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85E protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Processor | ST | |
| Motion sensor | DA260 | |
| Wifi position | Wifi 4.0 | |
| Power | Battery |
Disposable Lithium-ion battery and (3.6V,8100mAh) and ultra-low discharge rate:less than 1%, store one year below 25℃ |
| Power consumption | Average working current <100mA; Power save current <10uA; | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | MicroSIM | |
| Indicator | 2 status LEDs, Green: GPS, Red: Celluar | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP65(optional IP67) | |
