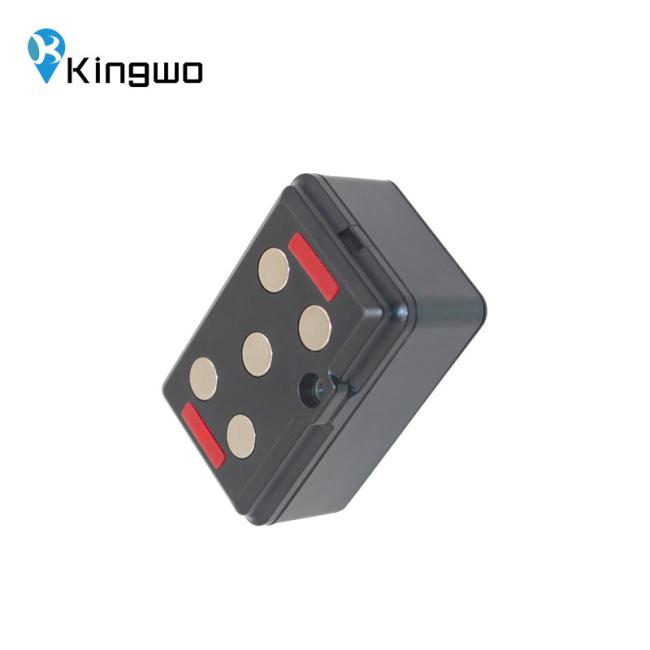

kingwo High Accuracy Car Locator Device mini gps tracking device long battery life ROSH
LT06PE standby large-capacity high accuracy GPS intelligent self-inspection low voltage alarm
In recent years, with the rapid development of the auto finance in domestic market, Kingwo has become a mainstream supplier of automotive financial risky control which based on Bediou/GPS technology, as “internet +expert of auto financial risky control products”, Kingwo has won good reputation and the market share has increased by 100% every year for three consecutive years
1. Clock mode
2. Motion alarm
3. Strong magnetic
4. Weatherproof for outdoors assets monitor
5. No wires and magnets for easy installation
6. Jamming detection
| Physical | Dimension | 81mm*66mm*33mm(L*W*H) |
| Weight | 193±5g | |
| Cellular | Communication module | Quectel BG95 |
| Frequency |
Working frequency: Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85 • Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85 • EGPRS: 850/900/1800/1900MHz
protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Processor | ST | |
| Motion sensor | DA260 | |
| Wifi position | Wifi 4.0 | |
| Power | Battery |
Disposable Lithium-ion battery and (3.6V,8100mAh) and ultra-low discharge rate:less than 1%, store one year below 25℃ |
| Power consumption | Average working current <100mA; Power save current <10uA; | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim | |
| Indicator | 2 status LEDs, Green: GPS, Red: Celluar | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP67 | |
